SW1810078 18-inch 100mm Subwoofer
100-core pure copper coil 18-inch 100mm Subwoofer
SW1810078 18-inch 100mm Subwoofer Specification:
Model | SW1810078 |
Description | 18-inch 100-core subwoofer |

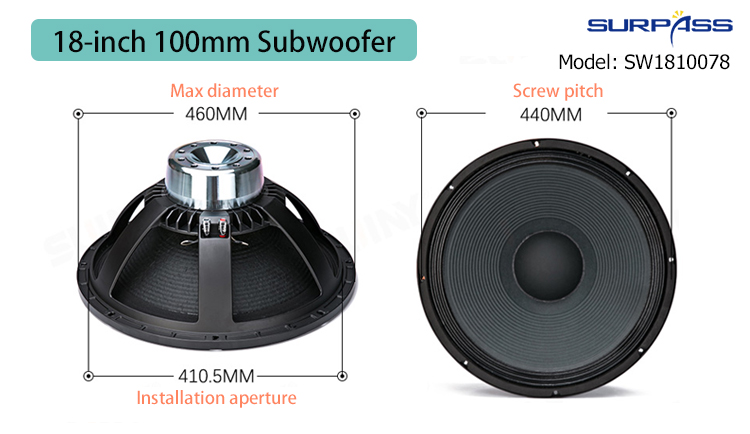

Installation aperture | About 410.5mm |
Diagonal screw hole | About 440mm |
Height | About 200mm |
Outer diameter | About 460mm |
Voice coil | 100-core pure copper coil |
Cone paper | Imported W-edged Basin |
Magnet material | Ferrite |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 800 Watts |
Maximum power | 1.6K Watts |
Sensitivity | 97 dB/1W/1m |
Frequency range | 43-1.5K Hz |
Resonant frequency | 38Hz |
Electrical Quality Factor Number | 0.389 |
Mechanical Quality Factor Value | 5.6 |
Total Quality Factor Number | 0.421 |
Effective Volume | 138 liters |
Vibration Area | 0.121m2 |
Magnetic Force | 20.18 Txm |
Effective Mobile Quality | 250g |
Place of Origin | Guangzhou, China |
Net Weight | About 10KG (No packaging) |
SW1810078 18-inch 100mm Subwoofer Features:
1. Thickened cast aluminium basin frame, better sound quality
18-inch subwoofer, thickened cast aluminum basin frame, high-power 100-core high-temperature resistant copper wire voice coil, good sound field with 24 strands of high strength braided line. Let you enjoy the sound effect of rock and roll live performance.
2. High sensitivity, mature and stable sound quality
Low-frequency strong and not loose, strong shock experience, high-performance magnets can also provide continuous power for low-frequency.
3. Excellent sound quality, shock enjoyment
The auditory feast stirred up your auditory nerves, and every place deduce a wonderful melody. Lightweight material, exquisite workmanship, wonderful original sound, shock experience from the selection of materials, everything is just for better music.
