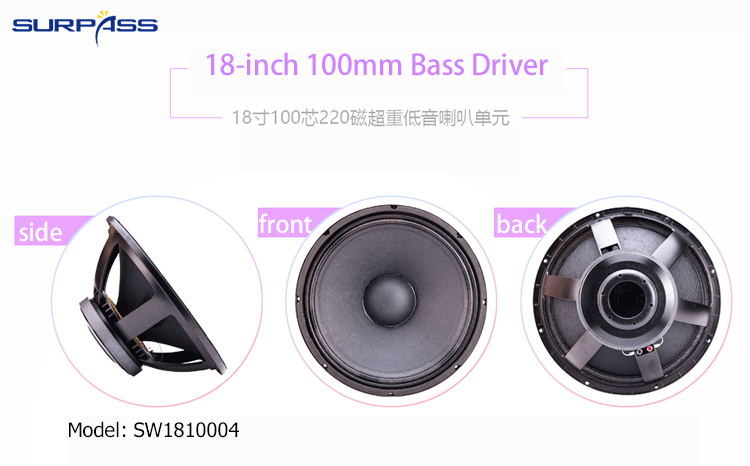

SW1810004 18-inch 100mm Bass Driver
18-inch 100-core woofer 18-inch 100mm Bass Driver
SW1810004 18-inch 100mm Bass Driver Specification:
Model | SW1810004 |
Description | 18-inch 100-core woofer |

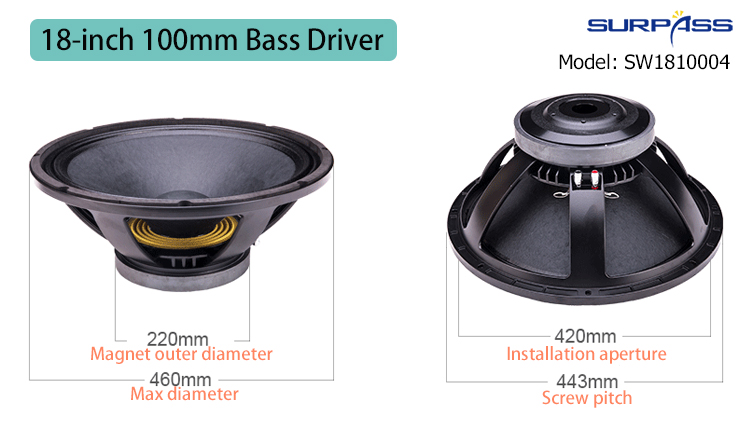

Installation aperture | About 420mm |
Diagonal screw hole | About 443mm |
Height | About 200mm |
Magnet | Ferrite |
Frame material | Cast aluminum frame |

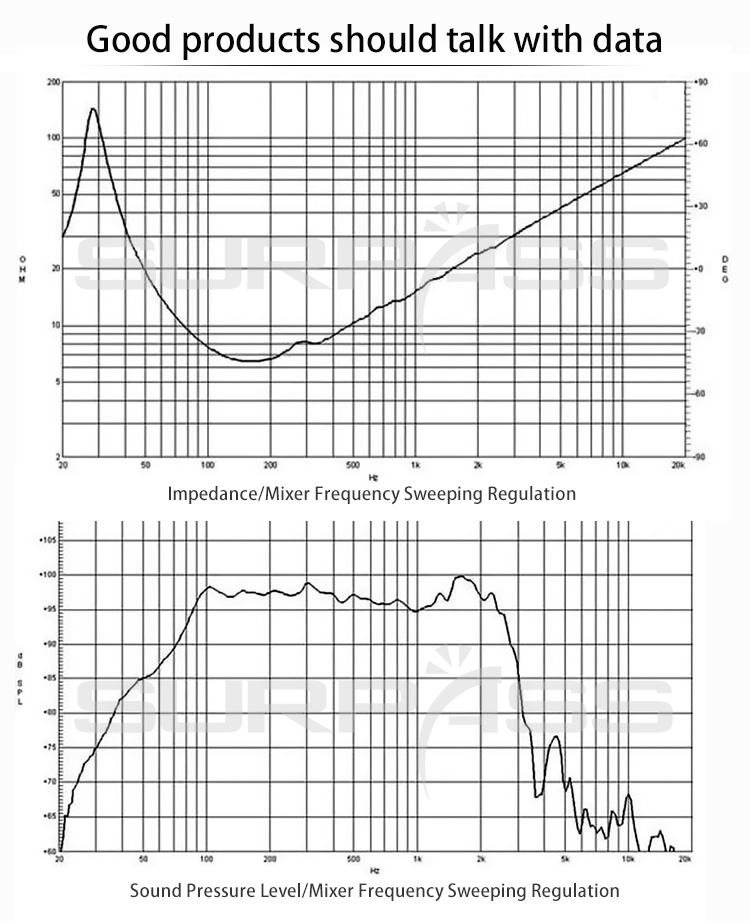

Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 700 Watts |
Maximum power | 1.4K Watts |
Sensitivity | 97 dB/1W/1m |
Frequency range | 40-2K Hz |
Resonant frequency | 30Hz |
Electrical Quality Factor Number | 0.25 |
Mechanical Quality Factor Value | 8.8 |
Total Quality Factor Number | 0.24 |
Effective Volume | 297 liters |
Vibration Area | 0.113m2 |
Magnetic Force | 26 Txm |
Effective Mobile Quality | 198g |
Place of Origin | Guangzhou, China |
Net Weight | About 12KG (No packaging) |
SW1810004 18-inch 100mm Bass Driver Features:
1. Subwoofer special use for bar
Aluminum casting structure formed by stamping of fine steel, with black matte paint coated on the surface, stable and reliable.
2. Original imported technical paper basin
The speaker basin plays a key role in the timbre of the speaker. Made of high-density elastic fibers, the low frequency is full and powerful, the sound quality is strong and has a heavy sense of strength.
3. Real material, thick and solid magnetism steel
Thickening magnet coil, strong driving force, high-speed heat dissipation of bottom round hole, prevent voice coil from heating.
4. Invulnerable shock bass
Wiring posts made of pure copper can reduce the distortion of sound quality transmission and preserve the original delicate and full sound quality.
