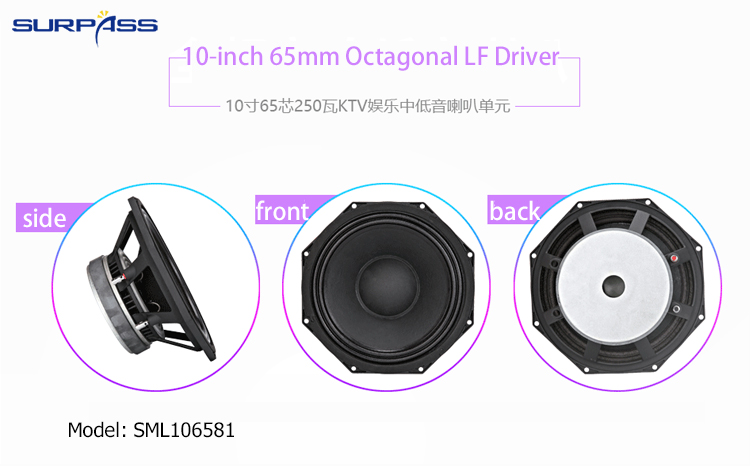

SML106581 10-inch 65mm Octagonal LF Driver
Ferrite 10-inch 65-core octagonal bass speaker 10-inch 65mm Octagonal LF Driver
10-inch 65mm Octagonal LF Driver Specification:
Model | SML106581 |
Description | 10-inch 65-core octagonal bass speaker |

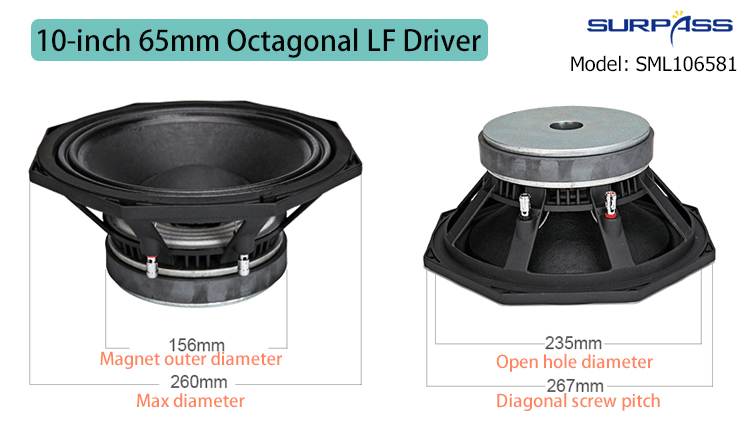

Installation aperture | About 235mm |
Diagonal screw hole | About 267mm |
Outer Diameter | About 260mm |
Magnet material | Ferrite |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 250 Watts |
Maximum power | 500 Watts |
Sensitivity | 96 dB/1W/1m |

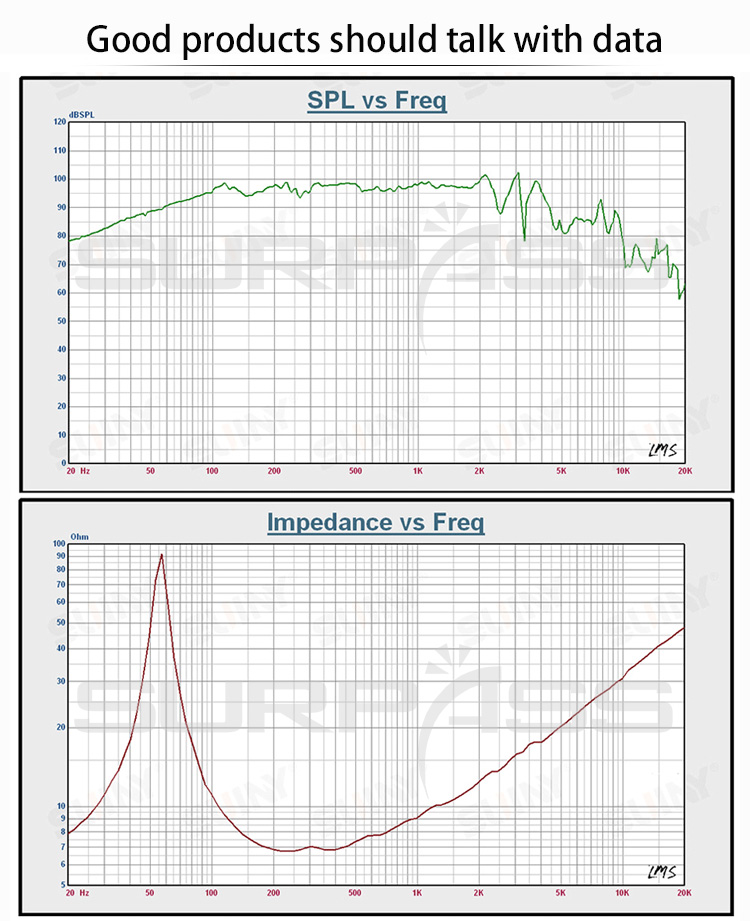

Frequency range | 8-4K Hz |
Resonant frequency | 61Hz |
Electrical Quality Factor Number | 0.33 |
Mechanical Quality Factor Value | 4.5 |
Total Quality Factor Number | 0.32 |
Effective Volume | 92 liters |
Vibration Area | 320.0cm2 |
Magnetic Force | 15 Txm |
Effective Mobile Quality | 29g |
Place of Origin | Guangzhou, China |
Net Weight | About 4.5KG (No packaging) |
10-inch 65mm Octagonal LF Driver Features:
1. Making quality audio enjoyment professionally
High quality aerospace magnetism, high sensitivity and low distortion
2. High elastic modulus, selvage paper basin
Reducing Segmentation Vibration to depress large amplitude distortion in low frequency band. Bass is powerful, widely used in high-end audio, good consistency and low distortion.
3. Octagonal PS10 general magnetism
Medium-bass speaker 10 inches, thickened cast aluminium basin frame, Dupont high power 62 core high temperature resistance, pure aluminium voice coil, 24 high strength braided wire.
