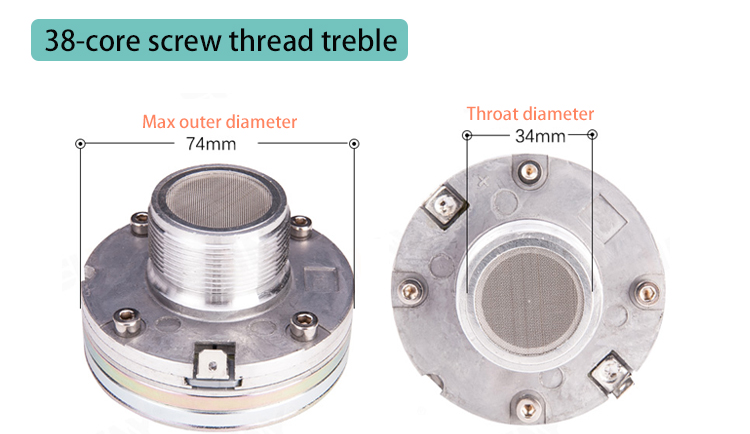

SH3883 38-core screw thread treble
74 magnetic 38-core screw thread treble
Specification:
Model | SH3883 |
Description | 38-core screw thread treble |
Max outer diameter | 74mm |
Screw installation | 34mm |
Throat diameter | 25mm |
Diaphragm material | Titanium |
Magnet | 74 magnetic |
Voice coil | 38-core pure aluminium coil |
Height | About 6.6cm |
Magnetic steel material | N40H NdFeB |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 40 Watts |
Maximum power | 80 Watts |
Sensitivity | 108.5 dB/1W/1m |
Frequency range | 1K-18K Hz |
Place of Origin | Guangzhou, China |
Net Weight | About 0.6KG |
Features:
1. All metal made
It has good anti-corrosion, reduces the loss of sound transmission signal, and is good for signal high sensitivity transmission.
2. Reinforced metal mesh
Has powerful high-power input processing capability, and will not break at too much volume.
3. Neodymium wear resistant screw thread
This screw thread is connected by neodymium magnetism, wear resistance and small to fix. It can be used for a long term.
