SH4402 44mm Core Neodymium HF Driver
NdFeB N40 44mm Core Neodymium HF Driver
Specification:
Model | SH4402 |
Description | 44-core neodymium treble |

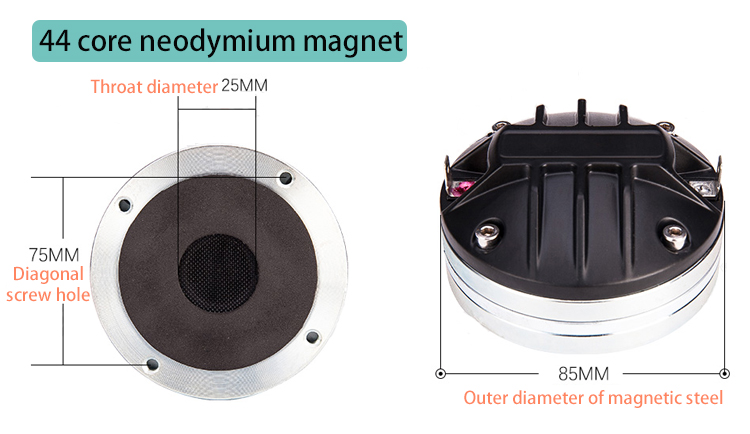

Outer diameter of magnetic steel | 85mm |
Diagonal screw hole | 75mm |
Throat diameter | 25mm |
Diaphragm material | High polymer Black Film |
Magnet | Neodymium magnetism (85 magnetism) |
Voice coil | 44-core copper-clad aluminium coil |
Height | About 4.4cm |
Magnetic steel material | NdFeB N40 |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 50 Watts |
Maximum power | 100 Watts |
Sensitivity | 107 dB/1W/1m |
Frequency range | 1.2-18K Hz |
Place of Origin | Guangzhou, China |
Net Weight | About 0.9KG |
Features:
1. 44MM Single Loop Design
The penetrating force is very strong and the N38SH magnet is more full
2. The magnetic flux is fuller and the sound quality is clearer
Magneto-steel material with excellent electro-acoustic field makes the power and sensitivity of the horn stronger, better response and lower distortion than that of the ordinary horn
3. Thickened cast aluminium rear cover，better sound quality
44.4MM voice coil and 85 magnet high-end Nd-Fe-B high-performance magnets. Original high-end imported high-temperature resistant gold composite film + imported copper-clad aluminum flat wire voice coil. Sound quality is very good. It's a good product for you to upgrade your sound.
4. Excellent sound quality, shock and enjoyment
The auditory feast stirred up your auditory nerves, and every place deduced a wonderful melody.Lightweight material, exquisite workmanship, wonderful original, shock experience from the selection of materials, everything is just for better music.
