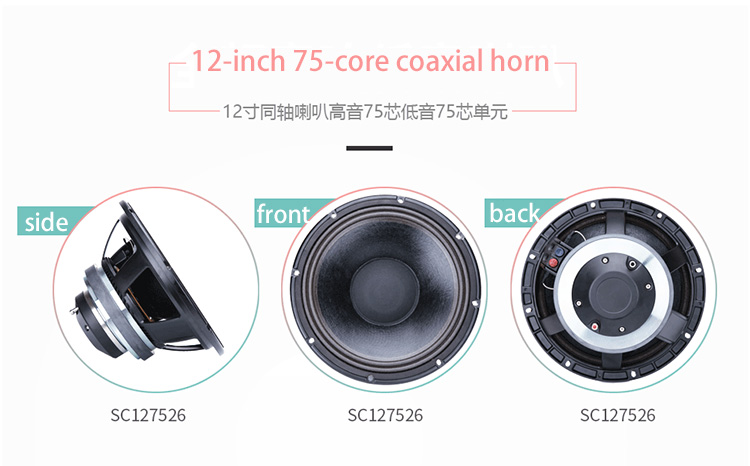

SC127526 12-inch 75-core coaxial horn
Surpass 12-inch 75-core coaxial horn
12-inch 75-core coaxial horn Nominal specification
Product Name | 12-inch 75-core coaxial horn | Speaker Brand | Surpass |
Installation Aperture | about 280mm | Magnet | Treble 131 Magnets/Bass 190 Magnets |
Diagonal Screw Hole | about 300mm | Net Weight | 9.3KG (No packing,about) |
Total Height | about 185mm | Frame Material | Cast aluminum frame |
12-inch 75-core coaxial horn Technical parameter
Rated Impedance | 8 ohm |
Voice Coil | Treble 75 core/bass 75 core |
Rated Power | Treble 80 Watts /bass 350 Watts |
Maximum power | Treble 160 Watts /bass 700 Watts |
Sensitivity | Treble 108 dB /bass 98 dB (1W/1m) |
Frequency range | 50-18000Hz |
12-inch 75-core coaxial horn T.S parameter
Resonant frequency | 48 Hz |
DC impedance | 5.6 ohm |
Number of loudspeaker electrical quality factor | 0.36 |
Mechanical Quality Factor Value of Loudspeaker | 5.4 |
Total Quality Factor Number of Speakers | 0.33 |
Effective Volume of Horn | 88 liters |
Vibration area | 502.0Cm2 |
Magnetic force | 14.4 Txm |
Effective Mobile Quality | 47g |
12-inch 75-core coaxial horn Product characteristics
1. Imagine the future, Professional Loudspeaker Brand
Reduce distortion and let music touch your soul
2. Paper pots are strong and durable
Natural drying paper basin, bass stable and powerful, broad voice, rich feelings, clear and sharp mouth, surface can do bright paint, waterproof treatment
3. Using Y35 ferrite
Low magnetic force, reduce the demand for power, bass play more smoothly, more stable, can maintain a better sense of rhythm
4. From R&D to material selection to every work
Put the high and low softness into the water as a stone, and emit the high and low sound waves from one point, so as to recognize clearly and not interfere with the pure nature of the sound
5. Good resolution, strong stereo, high sensitivity, small volume and small distortion
