SC106536 10-inch 65-core coaxial horn
85 magnetism of high-low integration 10-inch 65-core coaxial horn
10-inch 65-core coaxial horn Nominal specification
Product Name | 10-inch 65-core coaxial horn | Speaker Brand | Surpass |
Installation Aperture | about 228mm | Magnet | 85 magnetism of high-low integration |
Diagonal Screw Hole | about 245mm | Net Weight | 3.3KG (No packing,about) |
Total Height | about 140mm | Frame Material | Cast aluminum frame |
10-inch 65-core coaxial horn Technical parameter
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | Treble 50 Watts /bass 250 Watts |
Maximum power | Treble 100 Watts /bass 500 Watts |
Sensitivity | Treble 105 dB /bass 96 dB (1W/1m) |
Frequency range | 63-18000Hz |
10-inch 65-core coaxial horn T.S parameter
Resonant frequency | 65 Hz |
DC impedance | 5.2 ohm |
Number of loudspeaker electrical quality factor | 0.42 |
Mechanical Quality Factor Value of Loudspeaker | 6.8 |
Total Quality Factor Number of Speakers | 0.4 |
Effective Volume of Horn | 31 liters |
Vibration area | 350Cm2 |
Magnetic force | 13.2 Txm |
Effective Mobile Quality | 33.4g |

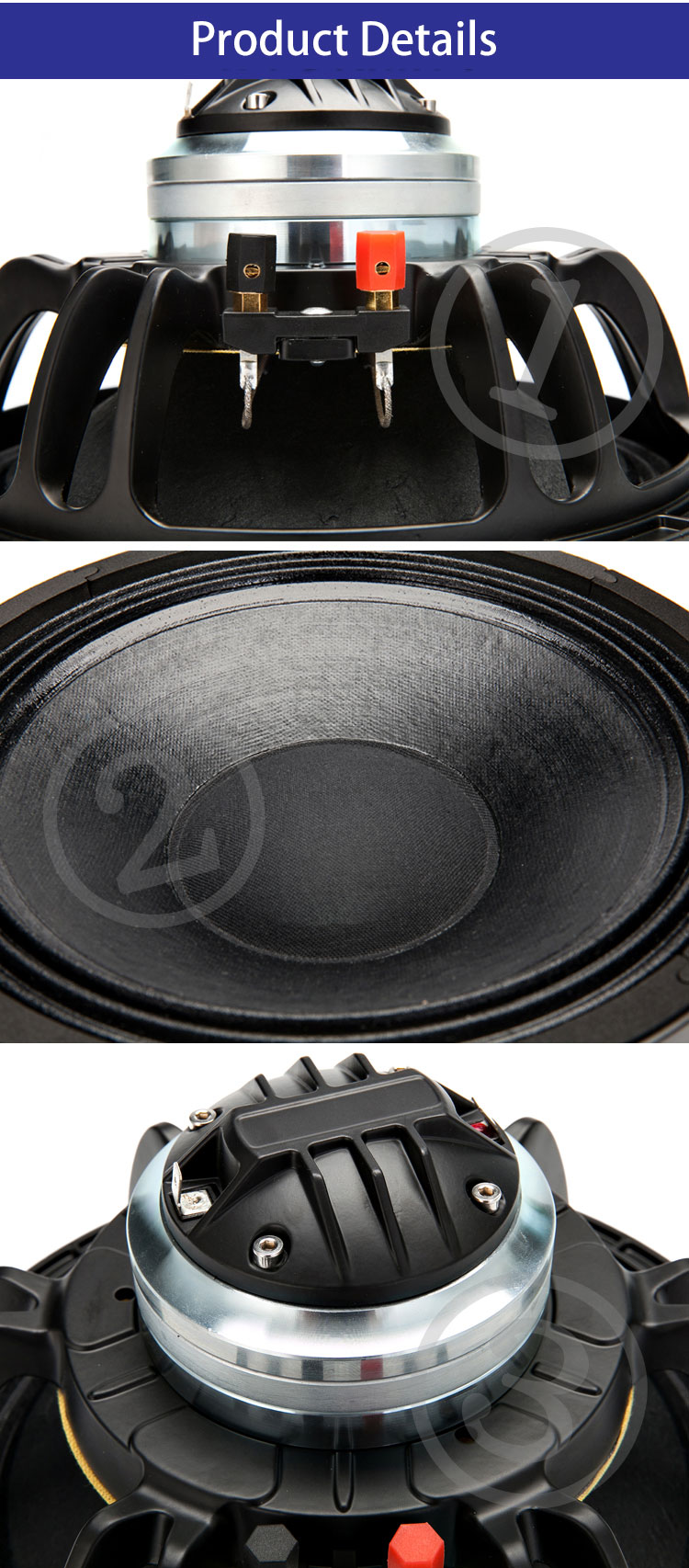

10-inch 65-core coaxial horn Product characteristics
1. Linear High Motion Bomb Wave
Reduce distortion and let music touch your soul
2. Paper pots are strong and durable
Special imported paper basin, strong and durable, more optimized handling of the horn's high-frequency and low-frequency combination, so that the tweeter more imaginative
3. High Performance Magnets
Using high performance Nd magnet steel, combination of advantages
4. Improving the amplification is impeccable
Chief Designer and Acoustic Expert Create Professional Speaker with Acoustic Performance, Bring you two enjoyments of visual and auditory pairs
