SC085062 8-inch coaxial horn
85 magnetism 8-inch 50-core coaxial horn
8-inch 50-core coaxial horn Nominal specification
Product Name | 8-inch 50-core coaxial horn | Speaker Brand | Surpass |
Installation Aperture | about 180mm | Magnet | 85 magnetism of high-low integration |
Diagonal Screw Hole | about 212mm | Net Weight | 1.6KG (No packing,about) |
Total Height | about 115mm | Frame Material | Cast aluminum frame |
8-inch 50-core coaxial horn Technical parameter
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | Treble 50 Watts /bass 150 Watts |
Maximum power | Treble 100 Watts /bass 300 Watts |
Sensitivity | Treble 104 dB /bass 97 dB (1W/1m) |
Frequency range | 70-18000Hz |
8-inch 50-core coaxial horn T.S parameter
Resonant frequency | 68 Hz |
DC impedance | 4.9 ohm |
Number of loudspeaker electrical quality factor | 0.29 |
Mechanical Quality Factor Value of Loudspeaker | 4.7 |
Total Quality Factor Number of Speakers | 0.27 |
Effective Volume of Horn | 17 dm3 |
Vibration area | 220Cm2 |
Magnetic force | 12.6 Txm |
Effective Mobile Quality | 22g |

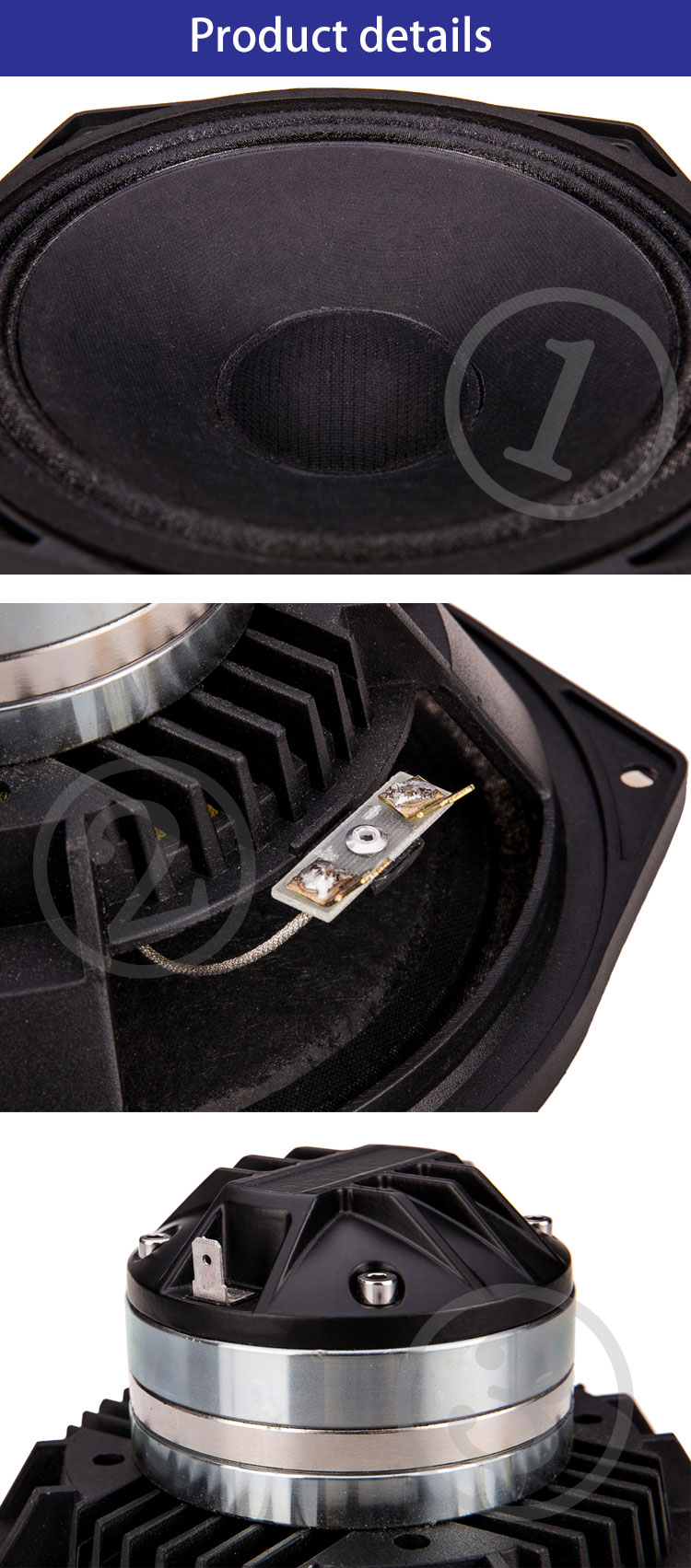

8-inch 50-core coaxial horn Product characteristics
1. Coaxial Horn Brand Sound Quality
Choose large heat dissipation constant temperature magnetron technology, sound performance is clearer
2. The tone is clear and full
Neodymium magnetic material, Magnetism is better than ordinary magnets, there are many advantages to make the sound smooth, calm, soft and pleasant.
3. Seiko material is durable
The bullet wave gap between the speaker basin and the coil is large, the high-pitch explosion is strong enough, and the instantaneous explosion can cushion the resistance
4. High transmission efficiency and excellent analytical power
High quality detail analysis, whether rock or pop or Lyric music, can bring you high fidelity sound effect
