4*30W 6 Inch Multi-zone Playback High Performance Wifi Blue-tooth Active Ceiling Speaker
▪ Intelligent stereo WIFI wireless transmission solution, unlimited listening to cloud tracks;

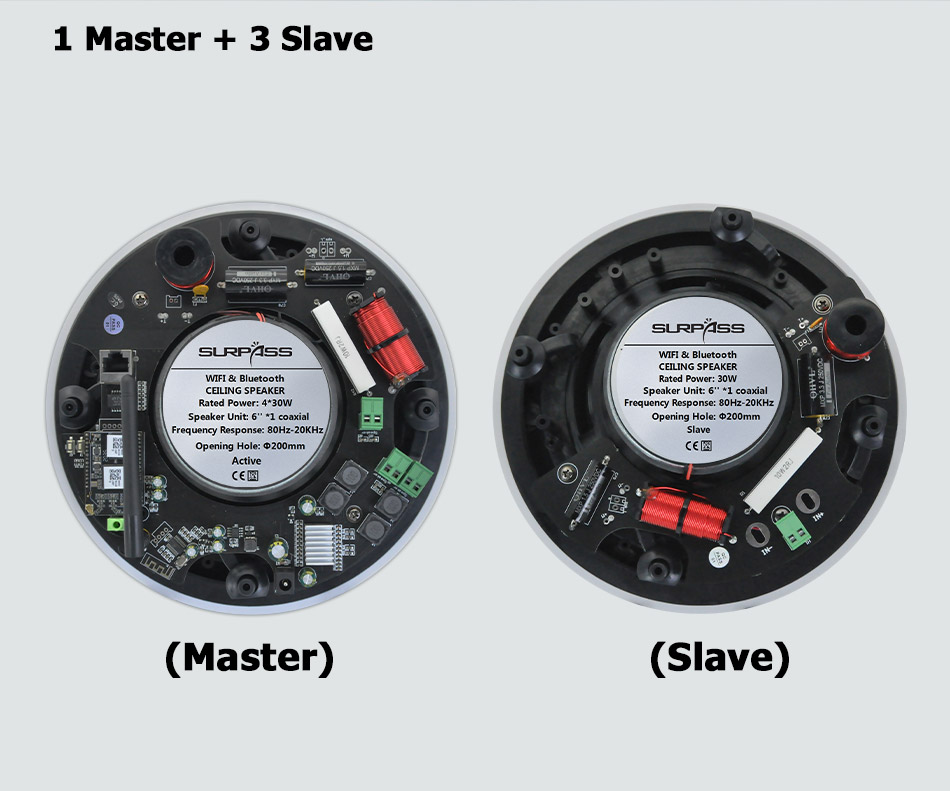

▪ Multi-zone playback, each zone can play different music programs without interfering with each other;
▪ WIFI wireless connection and LAN network direct connection;
▪ Can be pushed to the speaker through multimedia such as AIRPLAY/D LAN/Q PLAY;
▪ When using the push function, multiple phones will simultaneously display the currently playing songs;
▪ The online music library will continue to play massive online tracks as long as the network is connected normally;
▪ Device shutdown time can be set via APP player;
▪ Can query device information (WIFI signal strength, IP address, firmware version);
▪ In the device information column, you can set the prompt tone language and restore the factory settings;
▪ High-quality ABS plastic injection molding, durable, no deformation, no fading;
▪ Built-in D class 2 × 30W power amplifier circuit, fine sound quality, powerful;
▪ High fidelity stereo design, professional CD level sound;
▪ Flexible connection port and quick installation method, easy to use;
▪ AC110V~AC220V wide voltage supply mode, free from voltage fluctuations;
▪ With 1 stereo line input, 1 channel 100V constant voltage signal input;
▪ New professionally designed ceiling speaker system, two-way;
▪ 6 inch coaxial unit speaker,full frequency range coverage, clear and beautiful sound;
▪ Ideal for use in background music venues covered by WIFI signals;
▪ Rated power:4*30/Class D digital power amplifier module;
▪ Frequency response: 80Hz-20KHz(±3dB);
▪ Nonlinear distortion THD: <0.05% at 1kHz,1/3 rated output power;
▪ Signal to noise ratio S/N: >70dB;
▪ Speaker unit:6寸bass*1coaxial1.5寸treble;
▪ Power consumption: 162W;
▪ Installation: Ceiling mount;
▪ Decorative materials: ABS;
▪ Power supply:AC110V~AC220V±10% 50-60Hz;

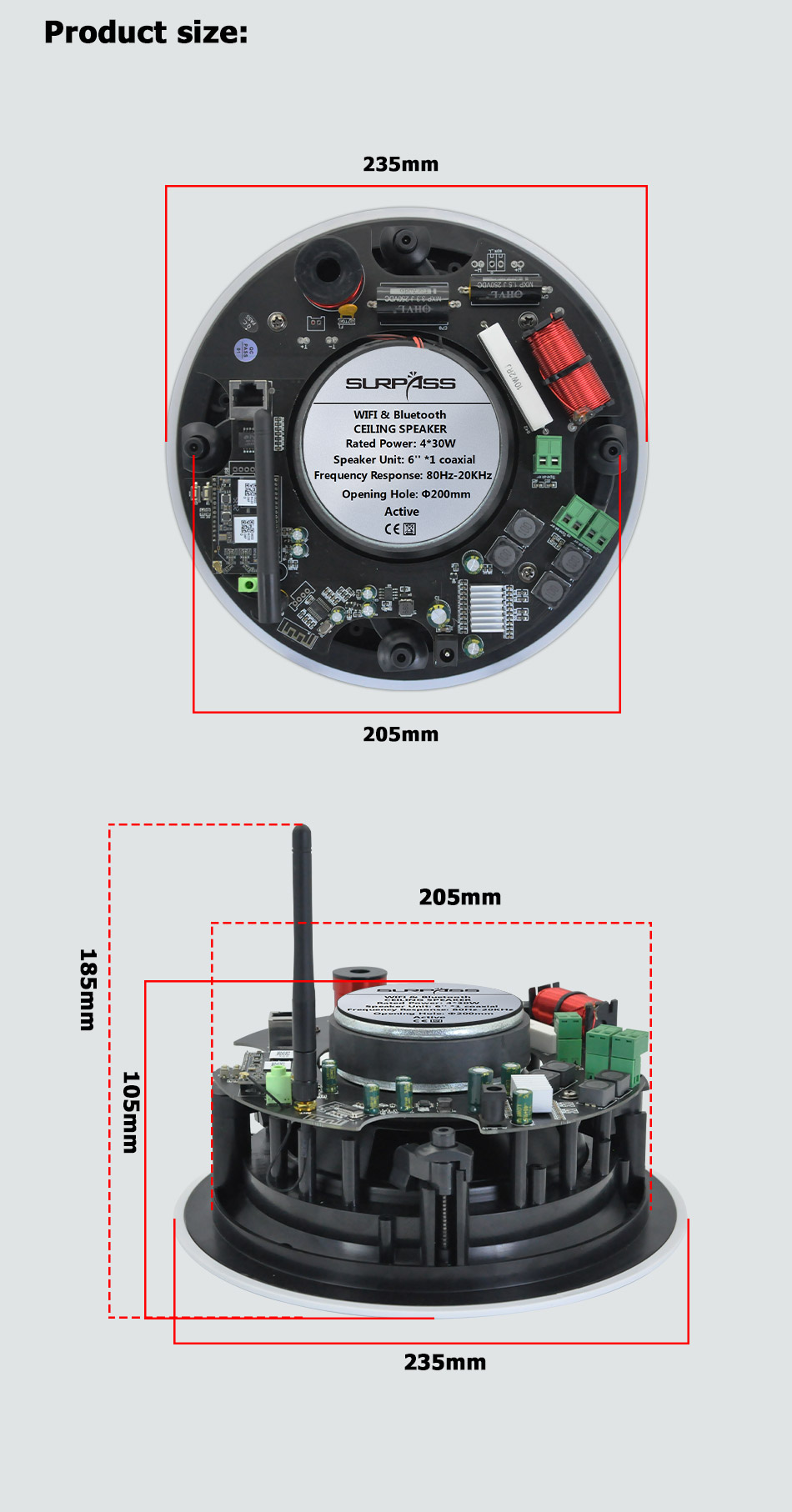

▪ Case size: Φ235*105*185mm(with antenna open);
▪ Opening hole size: Φ205mm;
▪ Weight: 9kg(4 pcs);
