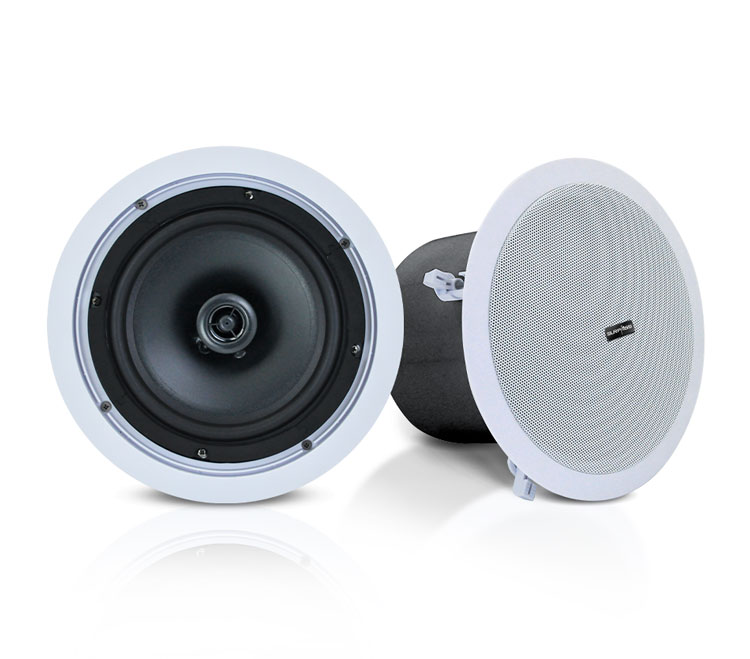

Passive 8inch ABS Ceiling Speaker With Crossver PA System Ceiling Hanging Speaker
▪ Power: 40W-20W-10W-5W
▪ Speaker driver: 8"*1+1"*1
▪ Input: 100V/70V/8Ω
▪ Frequency response: 60Hz-20KHz
▪ Sensitivity: 93±3dB
▪ Installation: Ceiling
▪ Material: ABS

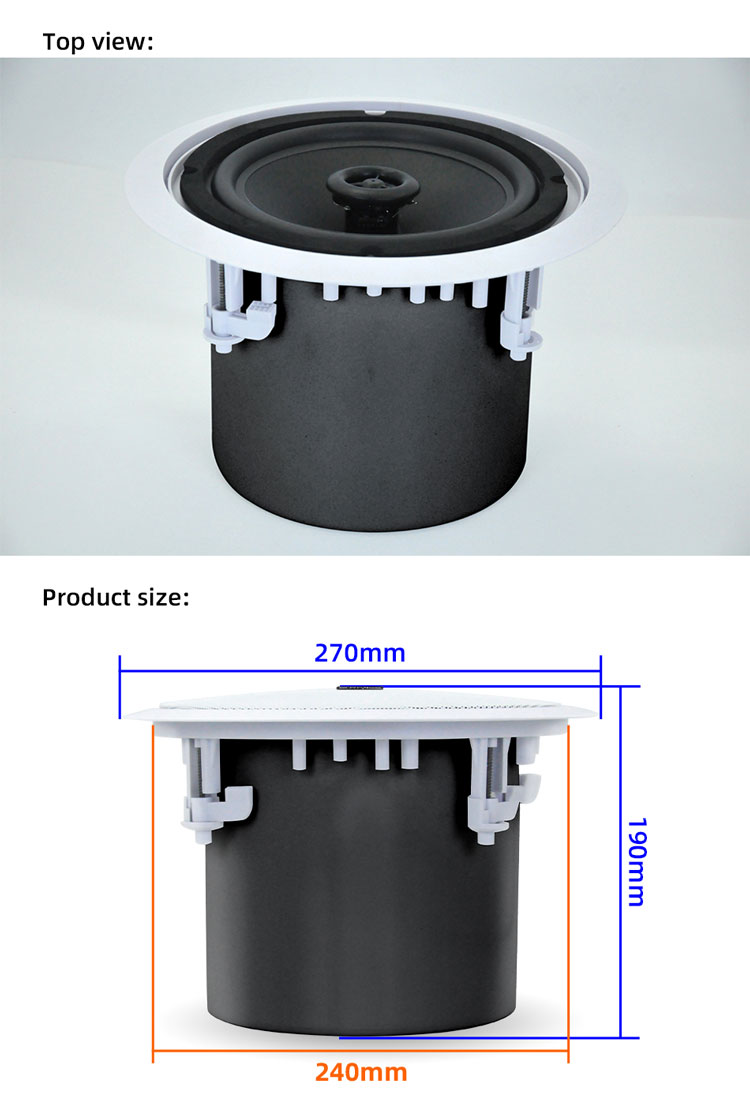

▪ Ceiling opening: Φ240mm
▪ Decorative cover size: Φ270*105mm
▪ Weight: 2.1kg
![2023/07/28/articles/092329409.jpg 2023/07/28/articles/092329409.jpg](/media/2023/07/28/articles/092329409.jpg)
![2023/07/28/articles/092335699.jpg 2023/07/28/articles/092335699.jpg](/media/2023/07/28/articles/092335699.jpg)
![2023/07/28/articles/092344586.jpg 2023/07/28/articles/092344586.jpg](/media/2023/07/28/articles/092344586.jpg)
![2023/07/28/articles/092349831.jpg 2023/07/28/articles/092349831.jpg](/media/2023/07/28/articles/092349831.jpg)
![2023/07/28/articles/092357386.jpg 2023/07/28/articles/092357386.jpg](/media/2023/07/28/articles/092357386.jpg)
![2023/07/28/articles/092407393.jpg 2023/07/28/articles/092407393.jpg](/media/2023/07/28/articles/092407393.jpg)
![2023/07/28/articles/092414482.jpg 2023/07/28/articles/092414482.jpg](/media/2023/07/28/articles/092414482.jpg)
