SP-BT614

Home Theatre Wireless Remote Control Blue-tooth 4*20W Stereo Sound Active Ceiling Speaker for Hotel/Gym/Store

Product Description：

▪ Power: 4*20W@8Ω ▪ Amplifier Channel: 4 Channel, RMS 4x15W amplifier board ▪ Amplifier Type: Digital Class D ▪ Frequency Response: 120Hz-15KHz(±3dB) ▪ THD: <0.05% at 1kHz,1/3 rated power ▪ S/N: >70 dB ▪ Speaker Unit: 6"*1 ▪ Installation: In-ceiling ▪ Material: ABS enclosure,metal clamps ▪ Power Supply: DC15V5A ▪ Dimension: Φ188*76mm ▪ Cutting Hole: Φ170mm

Specification：

item	value
Audio Crossover	Full-Range
Communication	Audio Line
Speaker Type	In-ceiling Speaker
Model Number	BT614
Type	Active
Use	HOME THEATRE
Channels	4
Place of Origin	China
Power	4*20W@8 Ohm
Amplifier Channel	4 Channel, RMS 4x15W amplifier board
Amplifier Type	Digital Class D
Frequency Response	120Hz-15KHz(±3dB)
THD	<0.05% at 1kHz,1/3 rated power
S/N	>70 dB
Speaker Unit	6"*1
Installation	In-ceiling
Material	ABS enclosure,metal clamps ▪ Power Supply: DC15V5A
Power Supply	DC15V5A

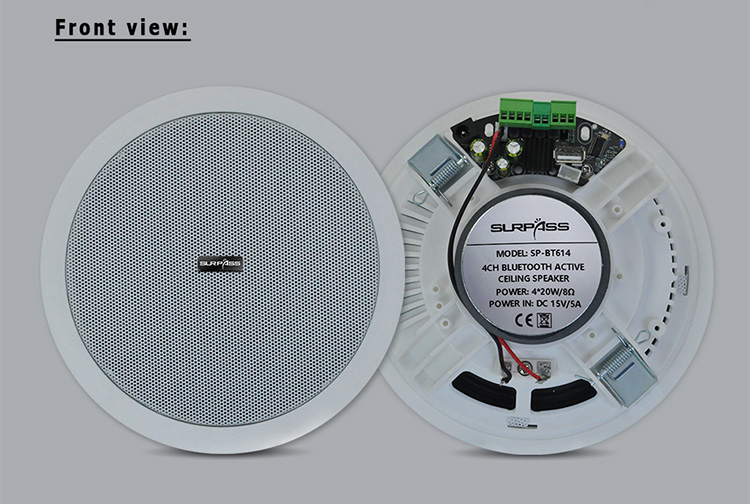

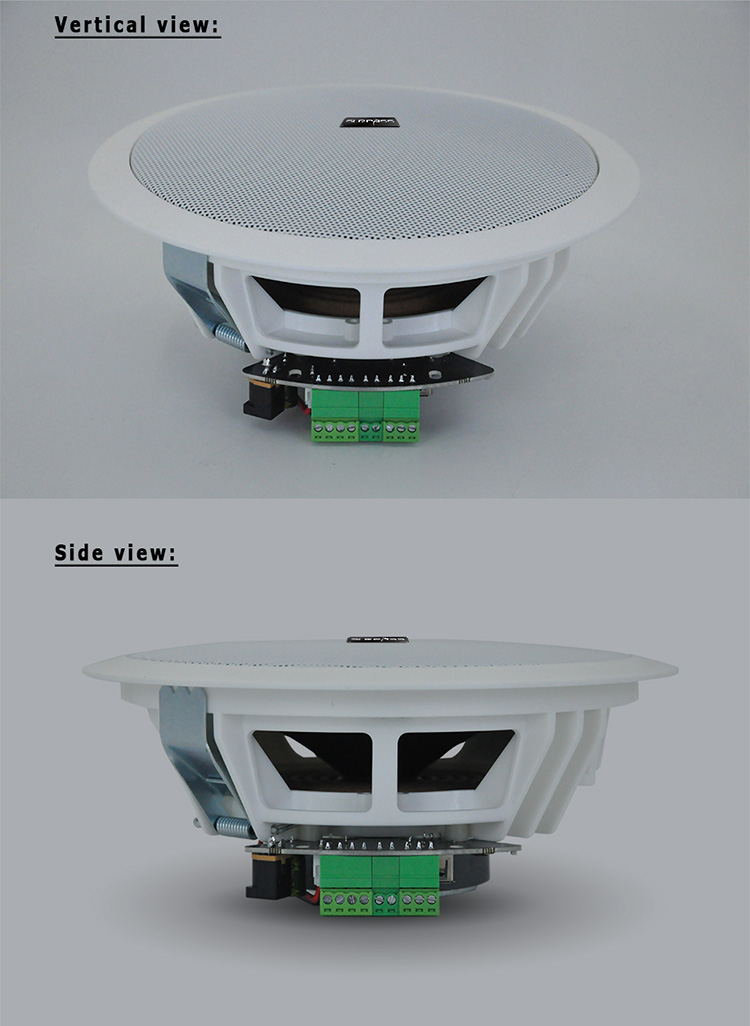

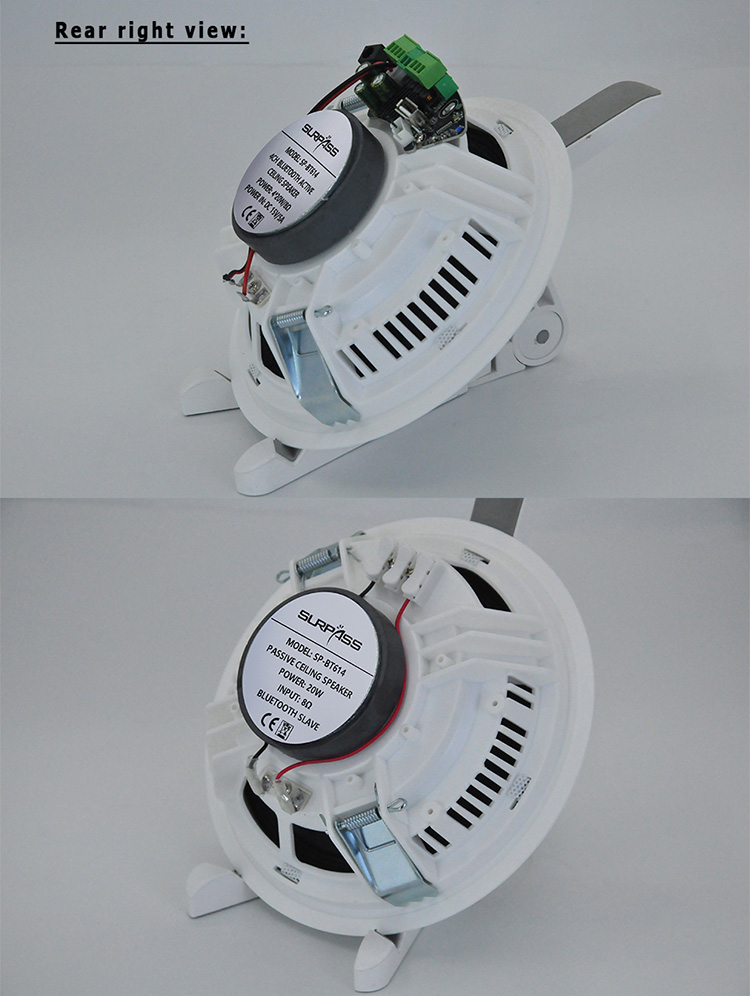

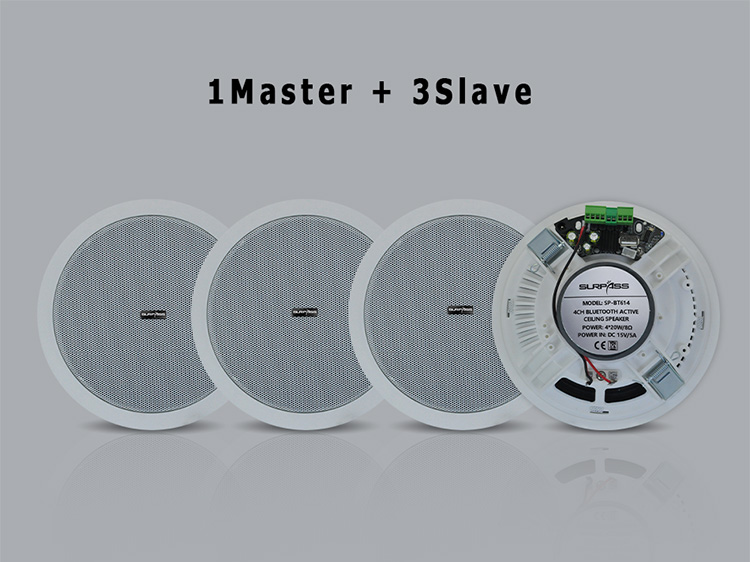

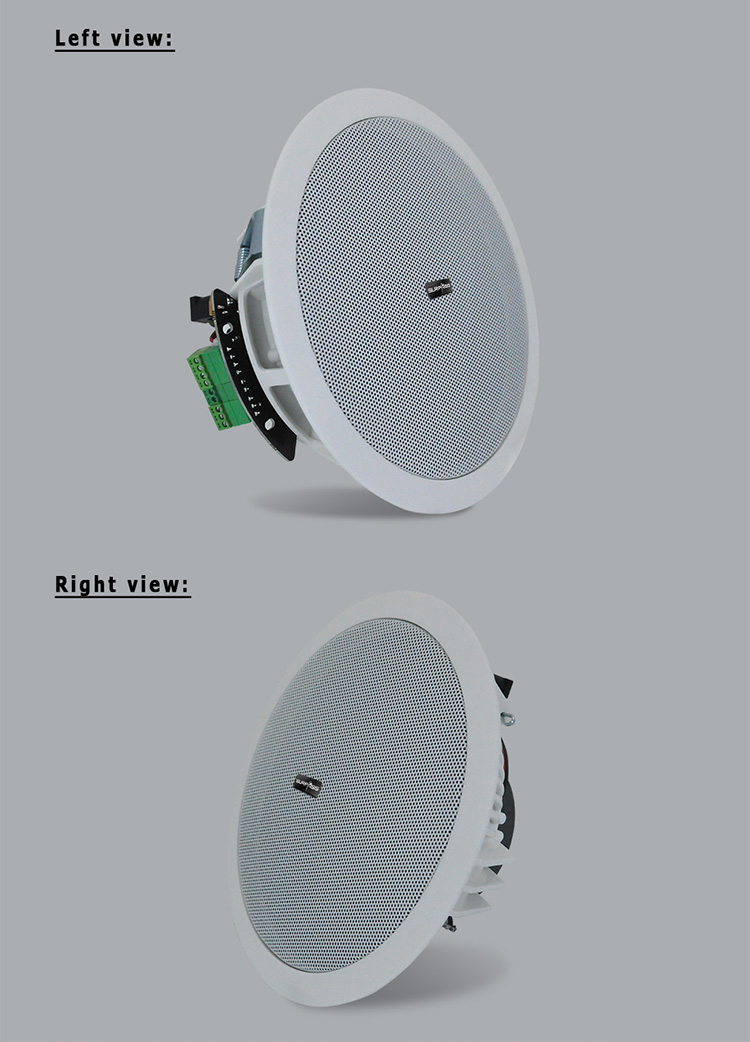

High Definition Pictures：

Brochure/Data Sheet： SURPASSCeilingSpeakerSP-BT614.pdf、
