SP-SD2300

 Product Description：

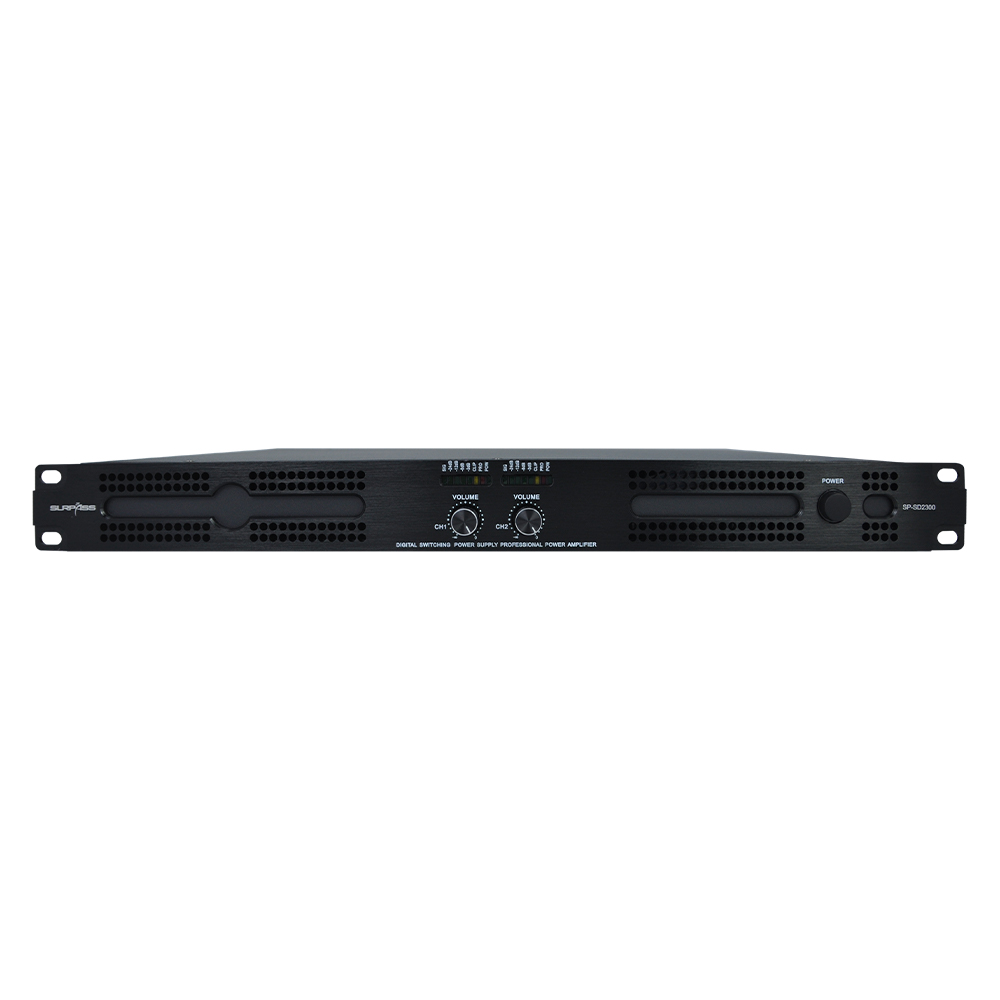

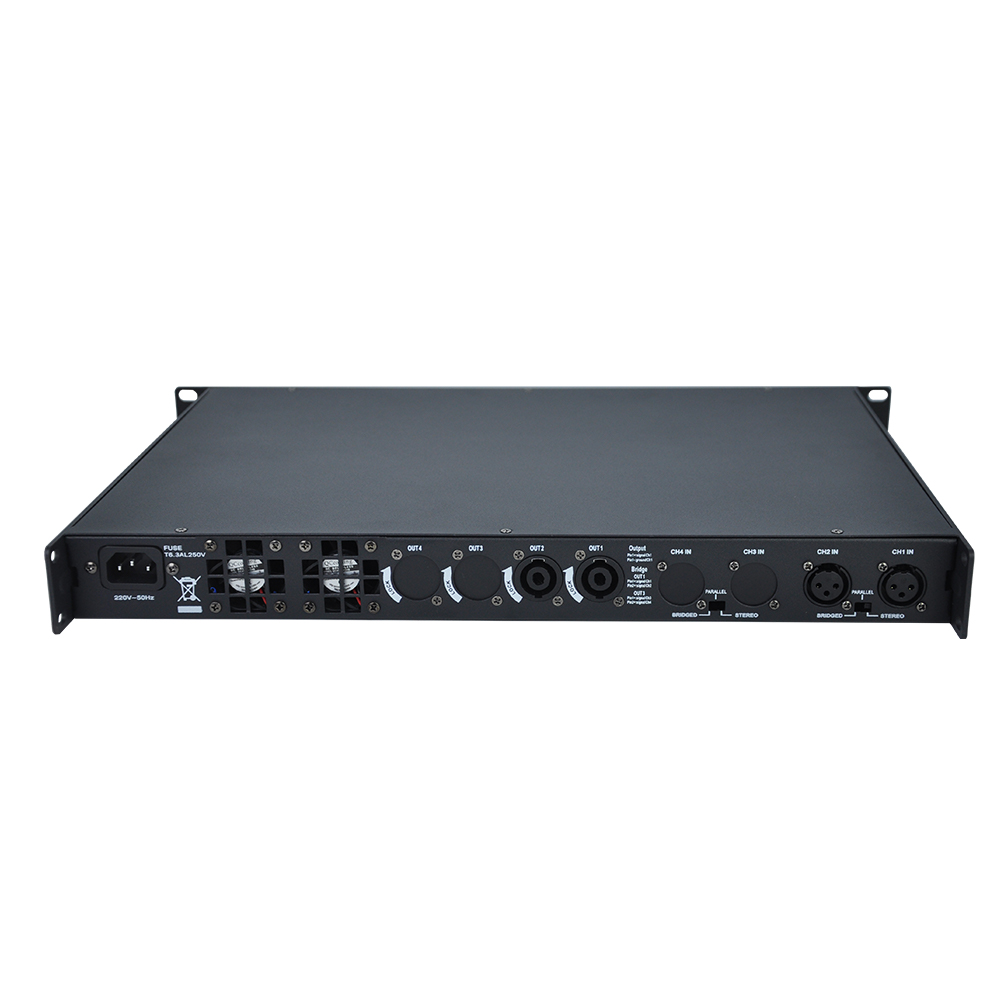

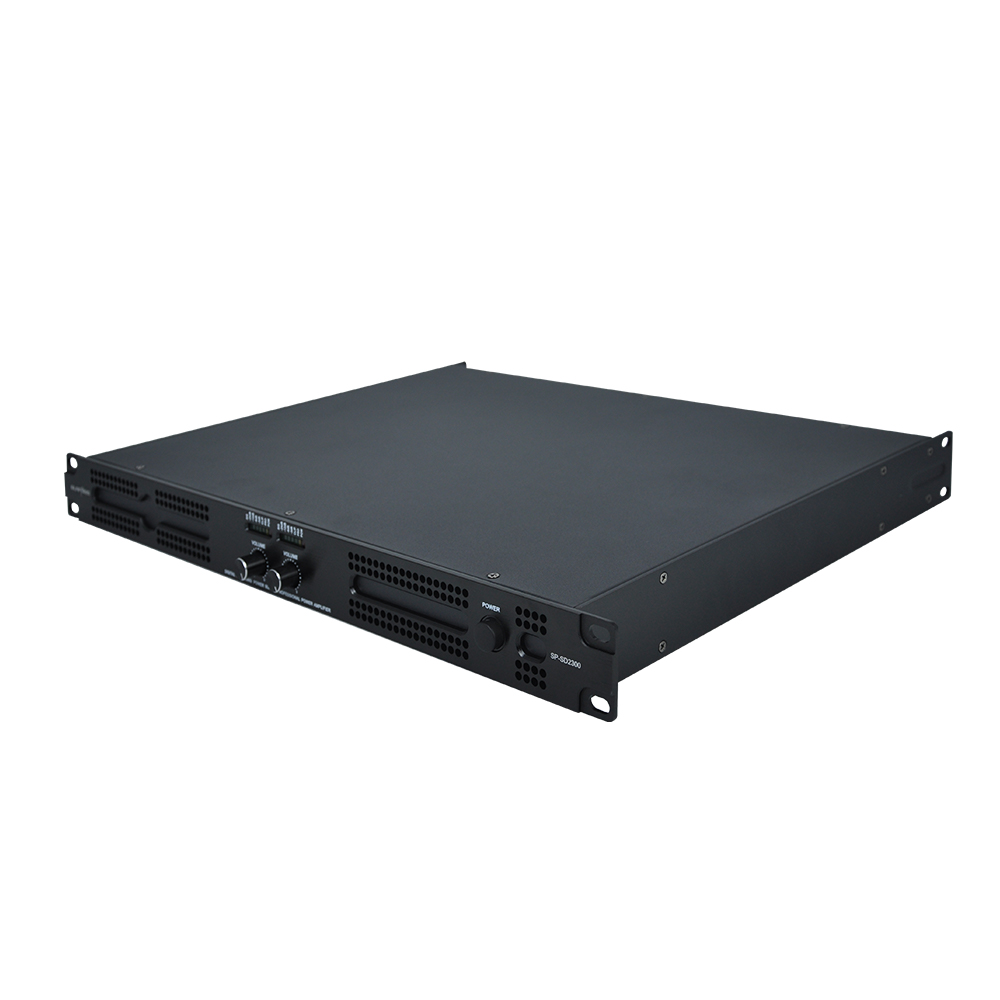

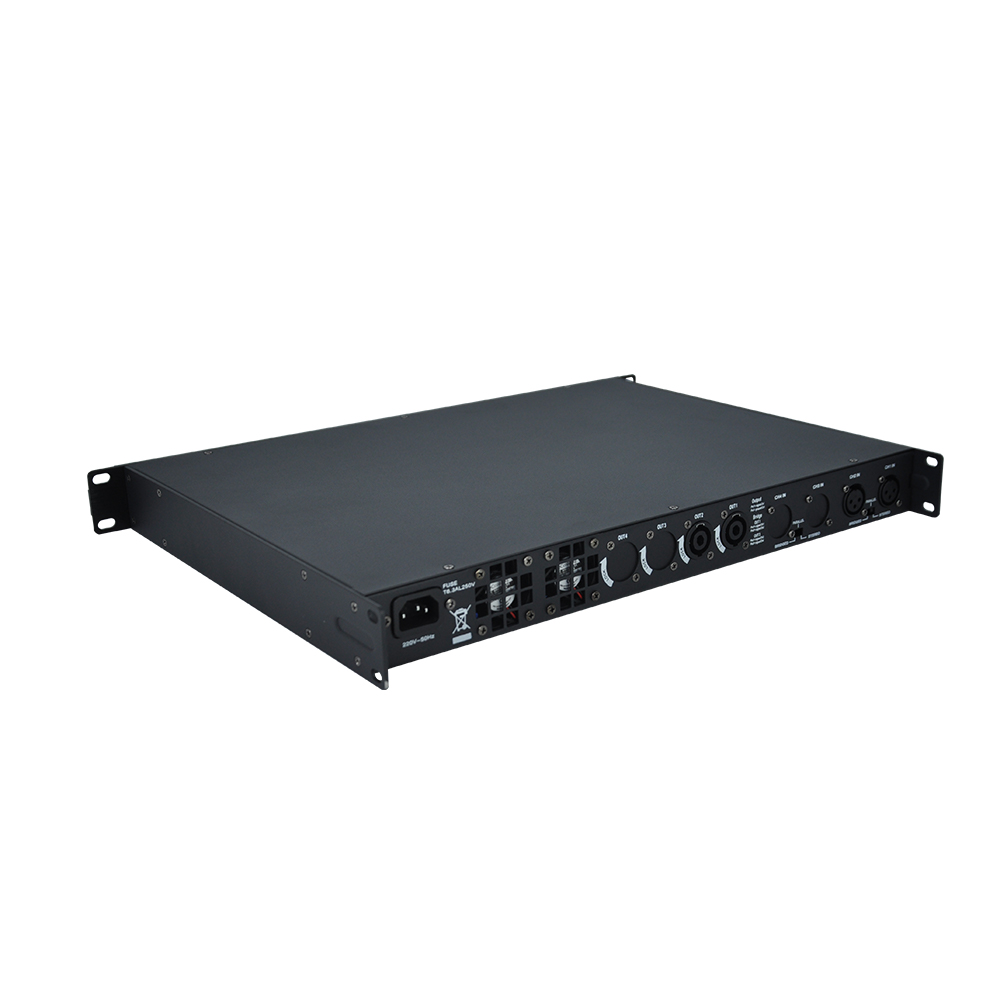

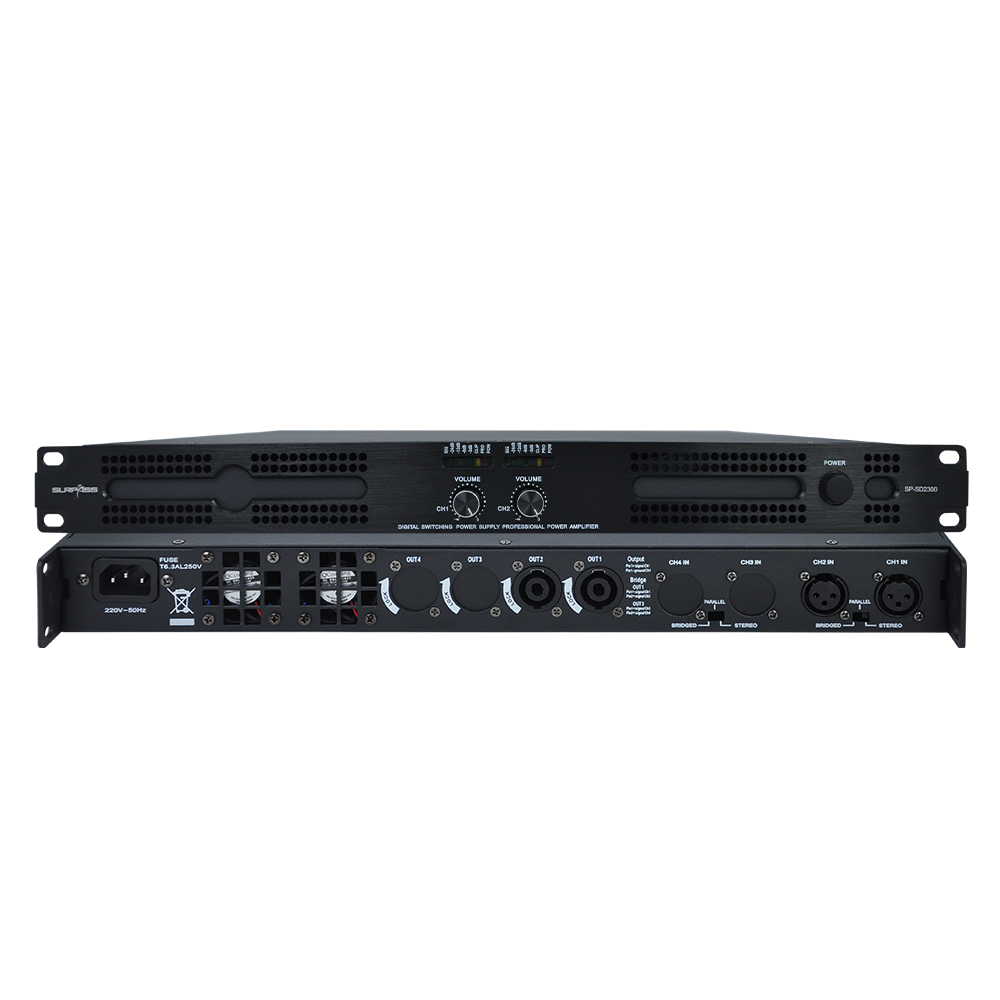

2 Channel 300W Class D Audio Stereo Professional Digital Professional Power Amplifier Sound Equipment/Amplifiers/Speaker

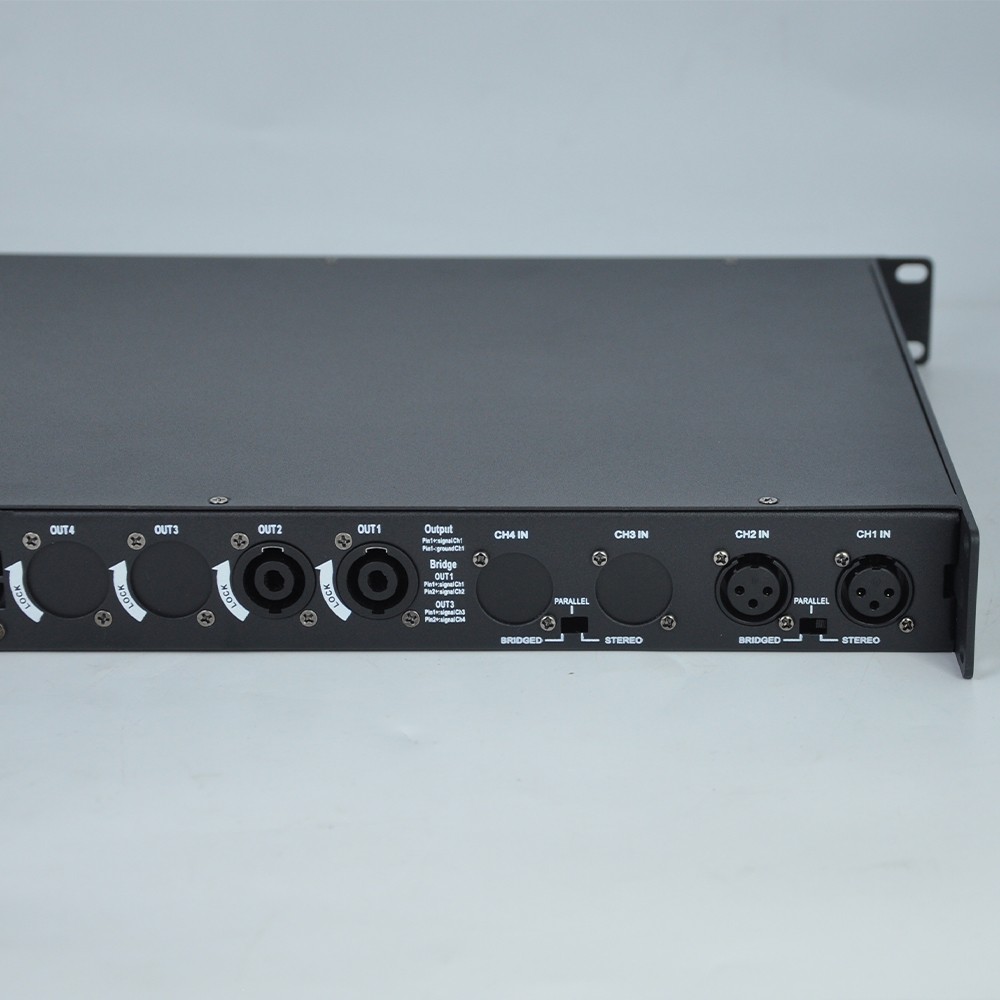

Input Type: Balanced Dragon Input

Input Sensitivity: 770mV

Output Impedance: 8Ω/4Ω

Frequency response: 20Hz-20KHz (1KHz/≤0.1%THD)

Signal-to-noise ratio: >92dB Channel separation: >50dB

Input Mode: Stereo, Signal Parallel, Output Bridge

Protection type: boot delay, boot soft start, over current compression, short circuit, over temperature, input volume automatic compression

Indicators: Power, Signal, Clip, Protect

Input power: AC90V~240V, 50Hz/60Hz Aluminum Panel

Production Dimension: 483*345*44mm

Package Size: 540*410*60mm

Specification：
