Product Description:
▪ Stereo wireless Blue-tooth transmission solution,BEKEN's BK8000L chip provides high quality sound quality and compatibility for the module,overall performance is superior;
▪ Comes with 1 channel 3.5 jack stereo local audio input;
▪ AC110V~AC220V power supply mode;;
▪ Reasonable structure, beautiful appearance, ceiling-mounted installation;
▪ Full-band speaker unit with a wide frequency response;
▪ High performance, low distortion, low loss;
▪ Wireless transmission range is more than 10 meters;
▪ Rated power:2*10W/Class D digital power amplifier module;
▪ Frequency response: 120Hz-15KHz(±3dB);
▪ Nonlinear distortion THD: <0.05% at 1kHz,1/3 rated output power;
▪ Signal to noise ratio S/N: >70dB;
▪ Support Blue-tooth protocol: HFPV1.5, A2DPV1.2,AVRCPV1.4,HSP1.2, GAVDP1.2,IOP;
▪ Speaker unit:Integration 6" Dual Cone Ceiling Speaker;
▪ Power consumption: 25W;
▪ Installation: Ceiling mount;
▪ Decorative materials: ABS;
▪ Power supply:AC110V~AC220V±10% 50-60Hz;

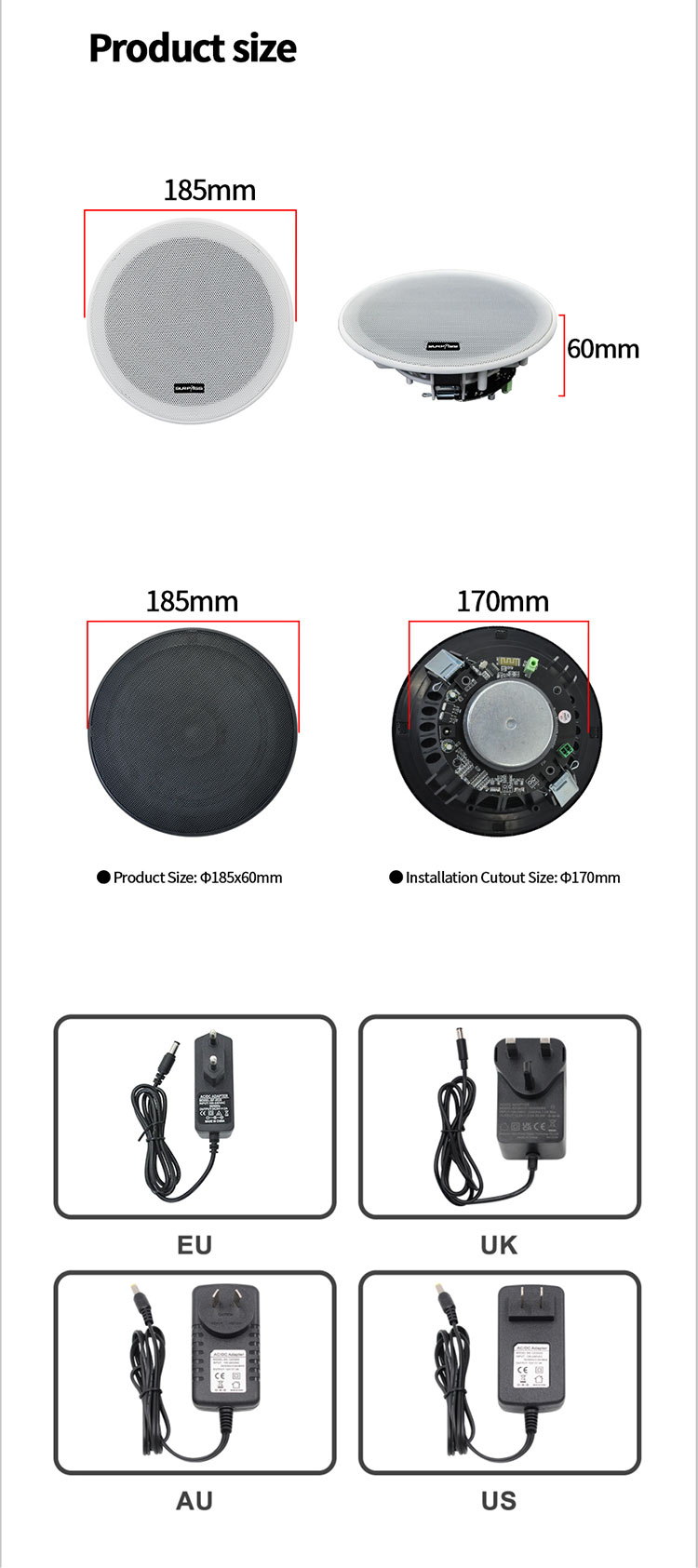

▪ Case size: Φ185x60mm;
▪ Opening hole size: Φ170mm;
▪ Weight: 1.6kg(2 pcs);
Specification:
Brand Name | SURPASS |
Model Number | BT62 |
Type | Active |
Use | HOME THEATRE, Mobile Phone, COMPUTER |
Place of Origin | China |
| Guangdong |
Power supply | AC110V~AC220V |
Rated power | 2*10W |
Frequency response | 120Hz-15KHz(±3dB) |
Nonlinear distortion THD | <0.05% at 1kHz |
Signal to noise ratio S/N | >70dB |
Support Blue-tooth protocol | HFPV1.5, A2DPV1.2,AVRCPV1.4,HSP1.2, GAVDP1.2,IOP; |
Speaker unit | Integration 6" Dual Cone Ceiling Speaker |
Power consumption | 25W |
Decorative materials | ABS |
Weight | 1.6kg(2 pcs) |
High Definition Pictures:
Brochure/Data Sheet:
SURPASSCeilingSpeakerSP-BT62.pdf、
Operation Manual:
