Product Description:
Model Number: SP-BT530
- Output Power: 30Wx2@8Ω
- Input Sensitivity: 0.5V
- Frequency Response: 60Hz-18KHz/1W,±0.5dB
- Harmonic Distortion: 20Hz-20KHz/1W,0.05%
- Damping Coefficient: >200@8Ω/400Hz
- Conversion Rate: 30V/US
- Channel Separation: >75dB(without weighting)
- S/N: >95dB(without weighting)
- Amplifier: Class D digital amplifier
- Indication: Power, channel signal indication
- Protection: Over temperature protection, overload protection, mute and switch

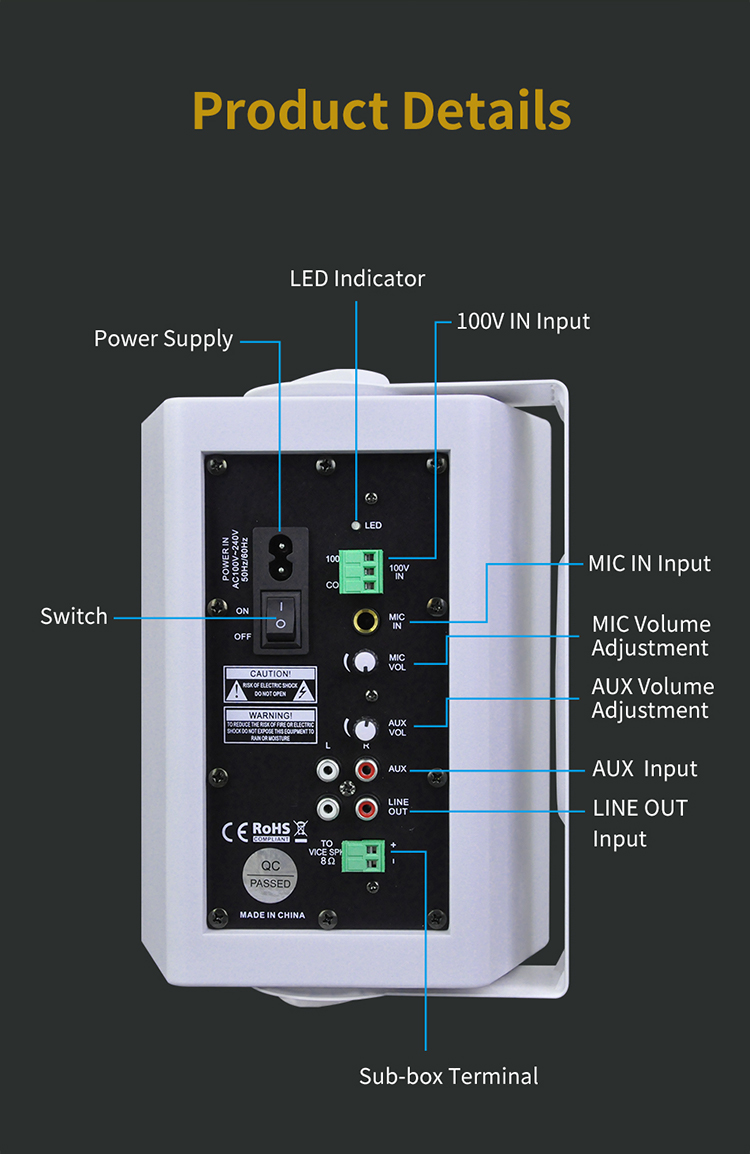

- Input: AV lotus seat, 6.5 socket, plug-in terminal
- Power supply: AC110V-240V/50Hz-60Hz

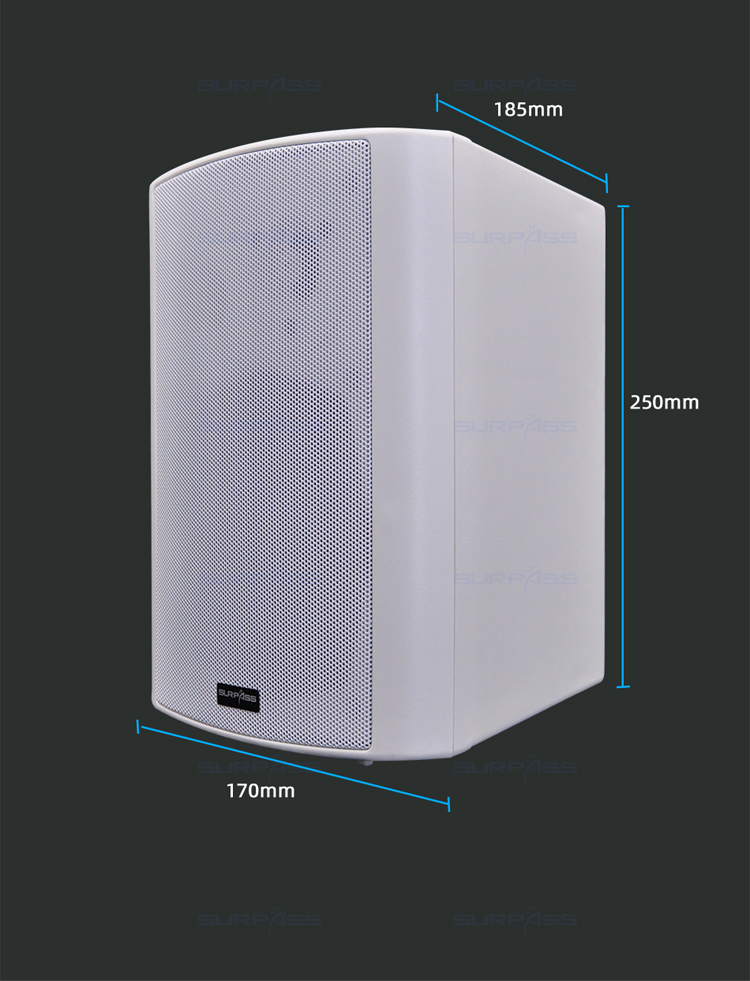

- Dimension: 170*185*250mm
Specification:
Output Power | 30Wx2@8Ω |
Input Sensitivity | 0.5V |
Frequency Response | 60Hz-18KHz/1W,±0.5dB |
Harmonic Distortion | 20Hz-20KHz/1W,0.05% |
Dimension | 170*185*250mm |
S/N | >95dB(without weighting) |
Amplifier | Class D digital amplifier |
High Definition Pictures:
Brochure/Data Sheet:
SURPASSWallMountSpeakerSP-BT530.pdf、
Operation Manual:
