PW7820T-g

7 inch Audio Amplifier Stereo Digital Amplifier Background Music Wall Mount Amplifier Smart Home Audio System

SPECIFICATIONS:

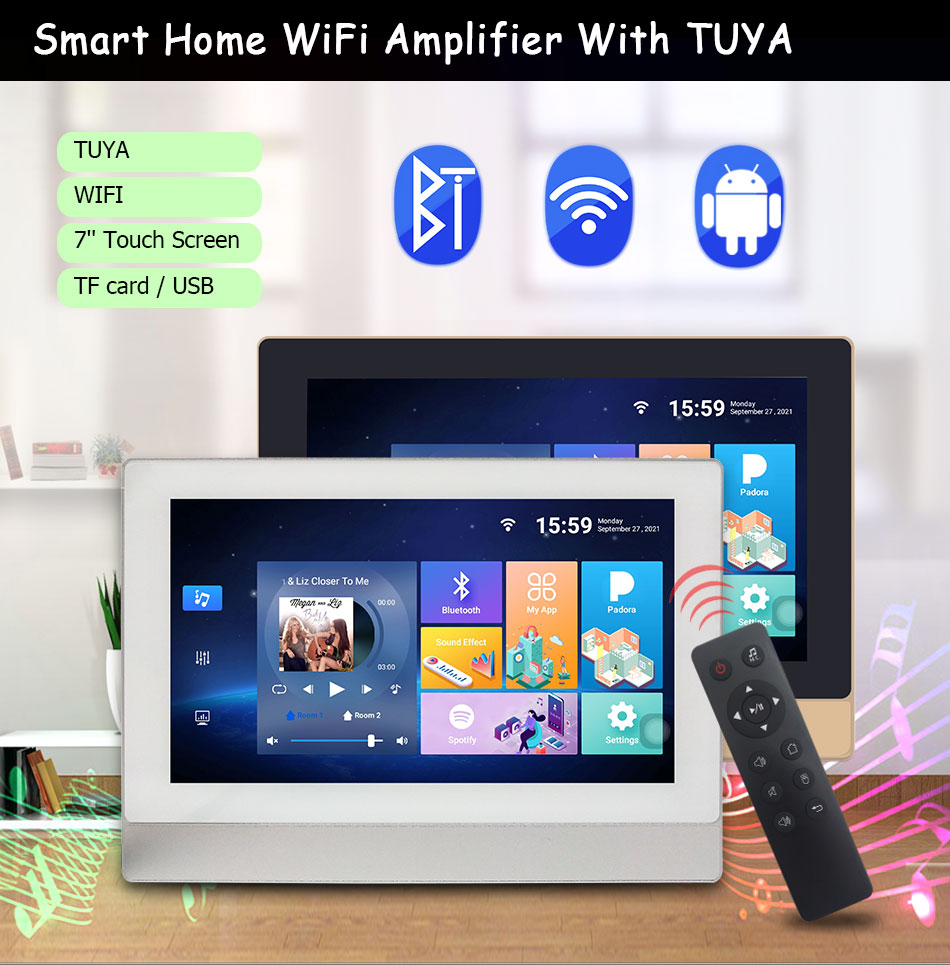

Wifi Bluetooth Wall Amplifier Support TUYA

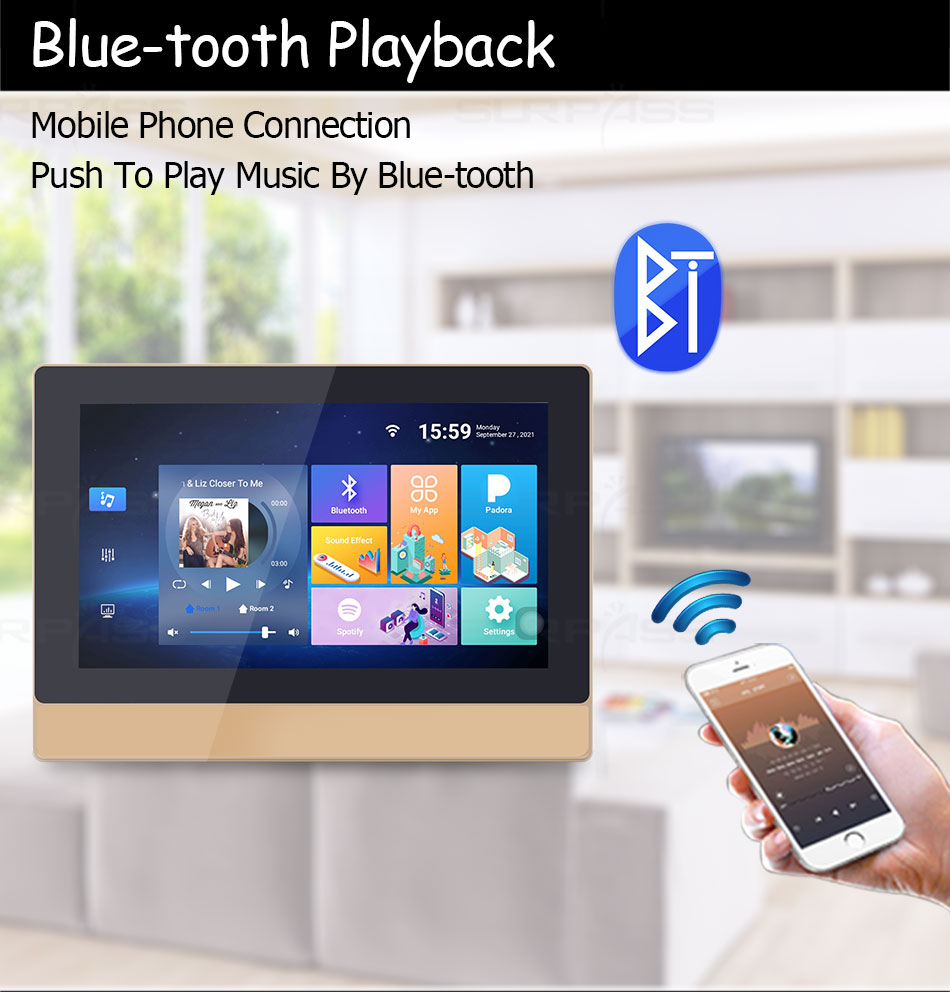

● Bluetooth: Version 5.0
● Power Input: AC110-250V

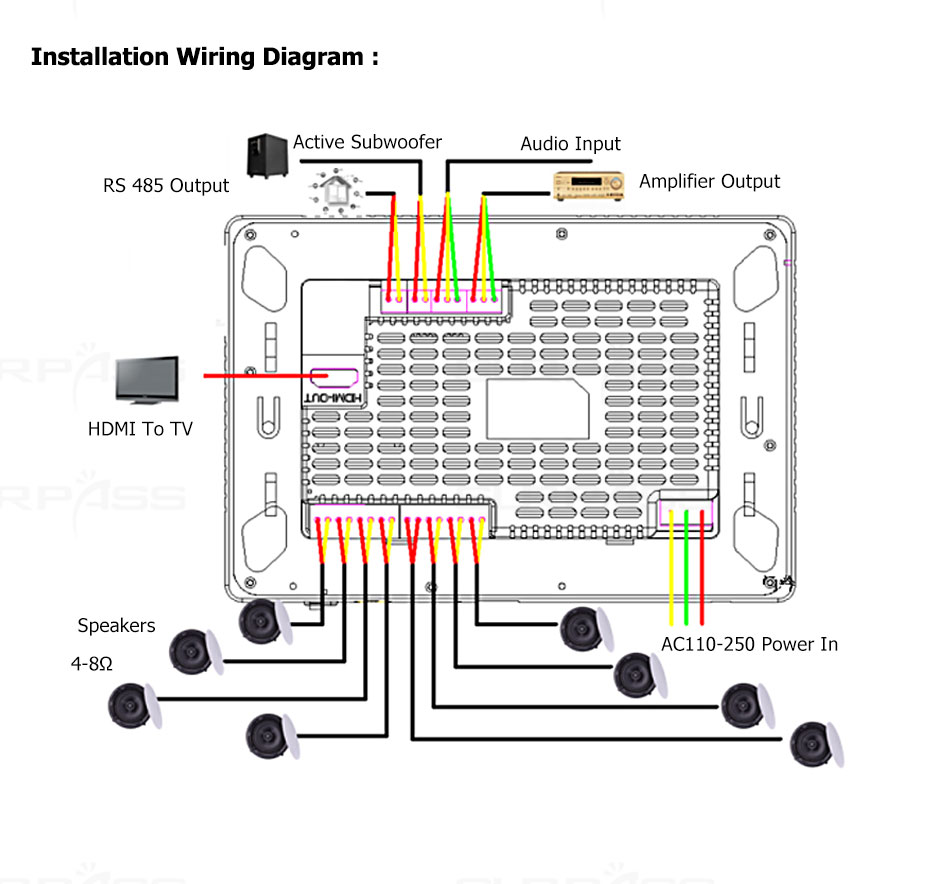

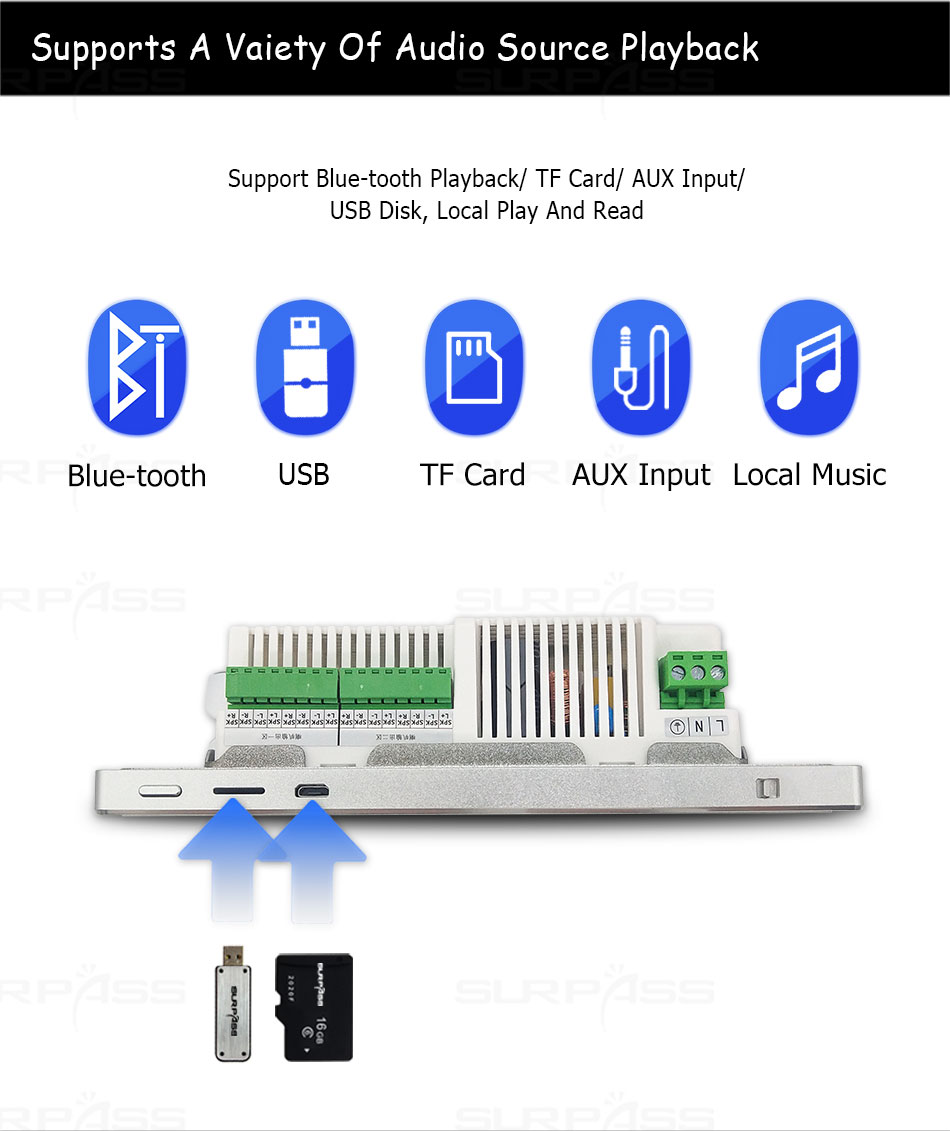

● Audio Input: AUX input, one set
● Audio Output: one set
● Active Subwoofer Output: one set
● HD MI Output: High Resolution Video output HD 1080P, Same screen display

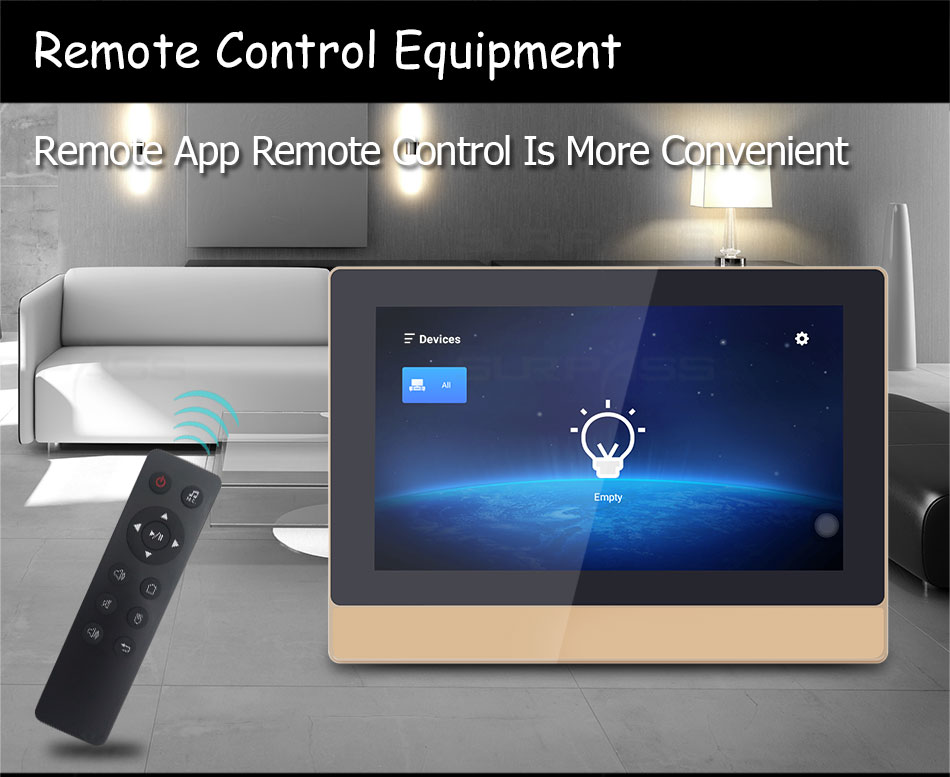

● IR Remote Control: Support
● Audio format: MP3, WAV, WMA, FLAC, APE, ACC, AC3, OGG etc.
● Video format: MPEG-1/2/3/4
● Feature: support TUYA, TikTok, Spotify, BluetoothPlay, Smart Youtube, Go Keyboard, Pandora, etc.


FEATURES:

7inch WIFI Bluetooth In wall Amplifier Android 8.1 Keypads FM House Multiroom Amplifier
1. System

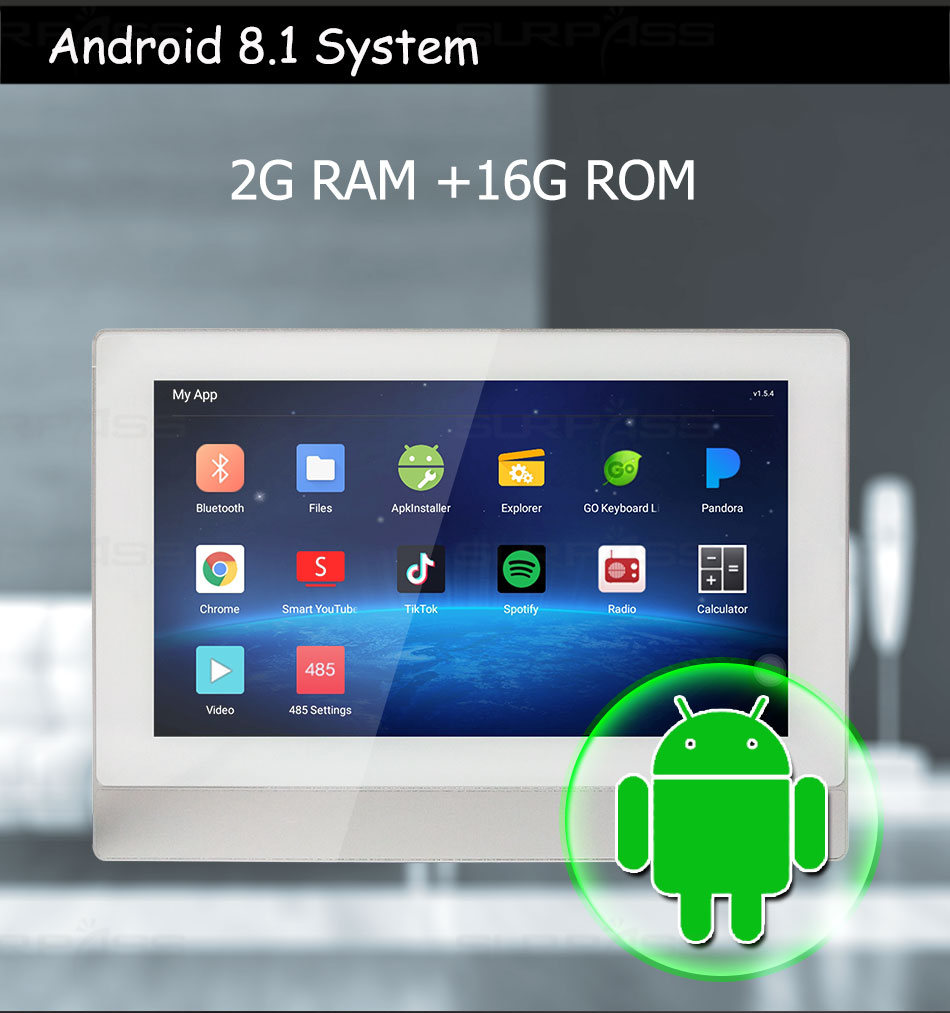

● Operation System: Android 8.1 System
● CPU Model: Quad-core Cortex-A35
● CPU Frequency: 1.5GHZ

2. Screen
● Main screen size: 7 inch
● Resolution: 1024*600
● Material: IPS(full view)

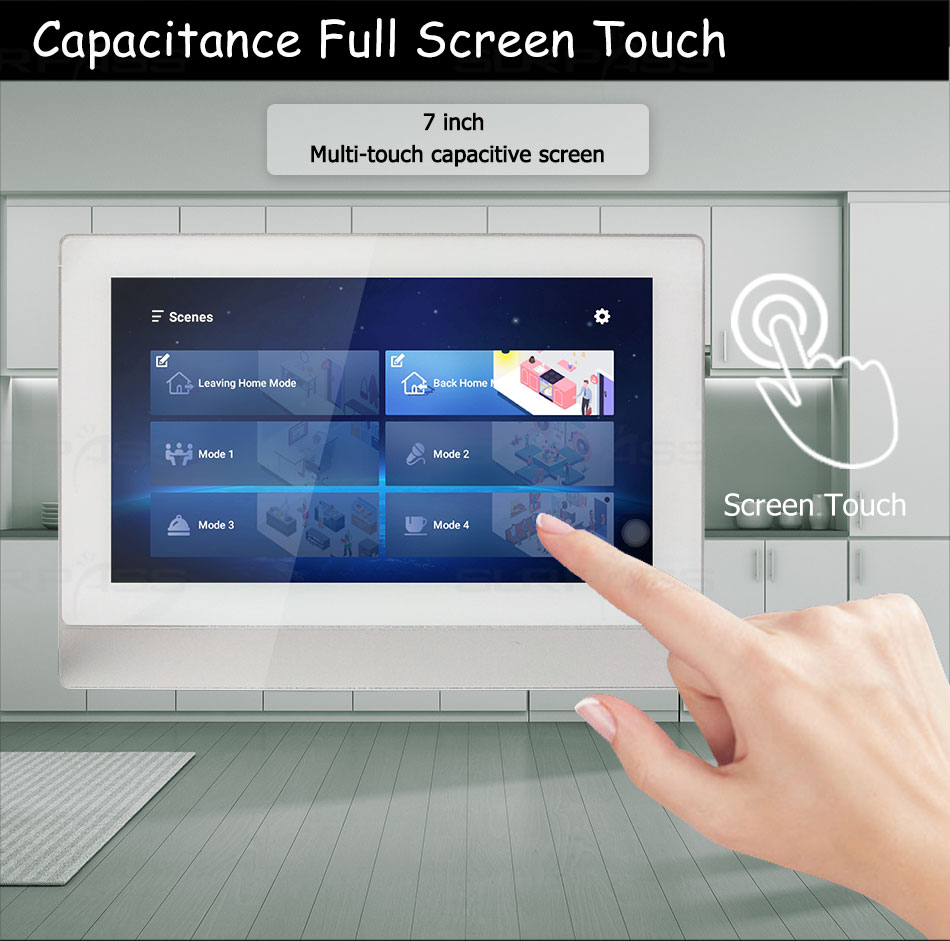

● Touch Screen: Multi-touch capacitive screen

3. Storage
● RAM memory: 2GB
● ROM: 16GB
● USB: 2.0 port,can read 32G

4. Network
● Wired port: not support
● WIFI: support

5. Amplifier
● Output Power: 8*20W(Ya maha digital amplifier)
● Output impedance: 4-8 ohm
● Total harmonic distortion: 0.03%(1W.1KHZ)
● Frequency response: 20Hz-20KHz
● Audio signal to noise ratio: 98db

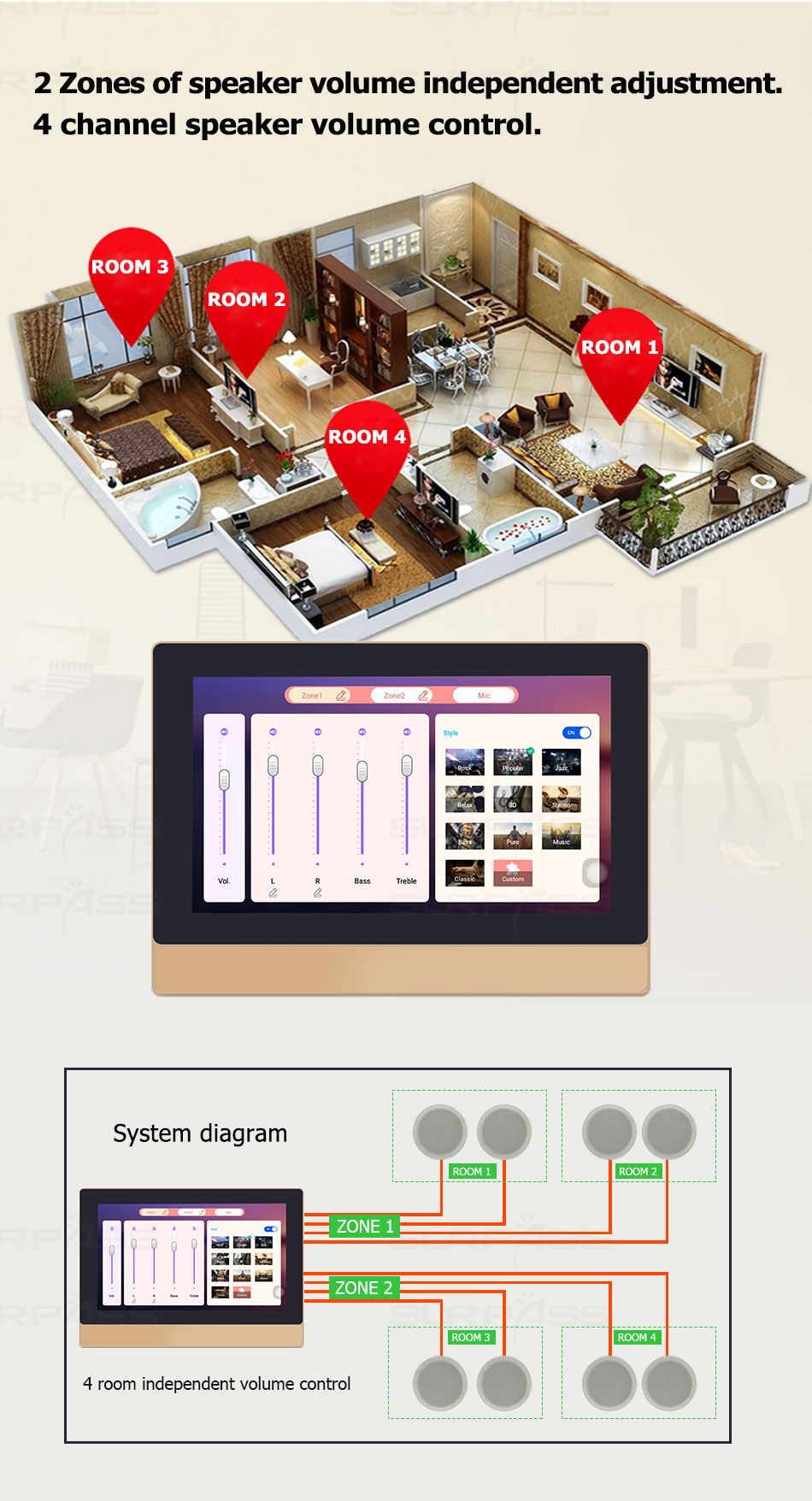

● Zone: Two Zones of speaker volume independent adjustment
● Speaker: Eight-channel speaker output
● Sound Effect: Built-in DSP 10 kinds of sound effect adjustment, compatible with branded speakers such as J BL, HiVi ect.

QUESTION & ANSWER:

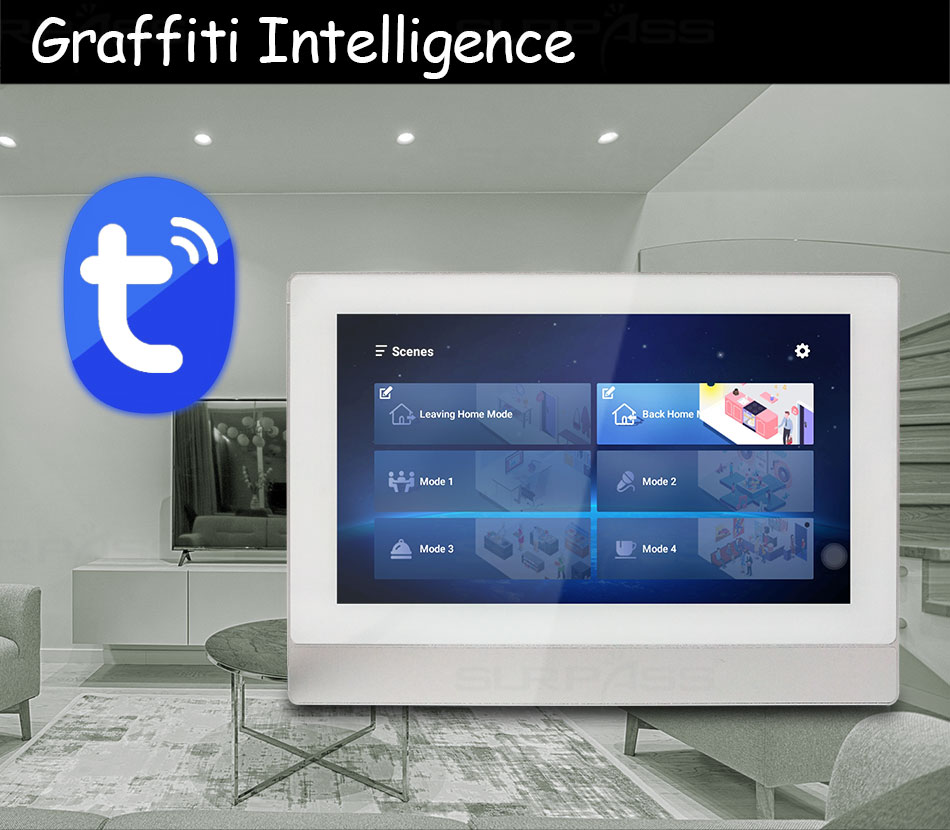

Q1: HOW TO USE TUYA FUNCTION?
√ A: You need to download the Tuya app on your phone then you use the app scan the QR code, after scanning the code, you can synchronize the devices added by the mobile phone TUYA

Q2: WAHT APP CAN BE SUPPORT?
√ A: TUYA, TikTok, Spotify, BluetoothPlay, Smart Youtube, Go Keyboard, Pandora, etc.


PACKAGE INCLUDED:

1. WIFI Bluetooth Wall Amplifier x 1
2. Remote Controller x 1
3. Mounted Box, Bracket and Screw
